Scientific definitions for triple point The temperature and pressure at which a substance can exist in equilibrium in the liquid, solid, and gaseous states. The triple point of pure water is at 0.01°C (273.16K, 32.01°F) and 4.58 mm (611.2Pa) of mercury and is used to calibrate thermometers.

What happens to water at the triple point?

The gas–liquid–solid triple point of water corresponds to the minimum pressure at which liquid water can exist. ... Above the triple point, solid ice when heated at constant pressure first melts to form liquid water, and then evaporates or boils to form vapor at a higher temperature.

What is triple point of water Why is it called triple point?

Triple point of water is defined as the temperature and pressure at which liquid water , solid ice and water vapour can coexist in a stable equilibrium . As , at triple point of water , both solid (ice) and vapour state are present so we can say that boiling point and freezing point become same .

What is the degree of freedom of water system at triple point?

Hence the degree of freedom will be Zero at the triple point of water.

What is the pressure at triple point of water?

At the pressure and temperature of the triple point, all three phases (solid, liquid and gas) exist in equilibrium. The triple point for water occurs at a pressure of 4.6 torr and 0.01^oC.

Thermodynamics - Explaining the Triple Point

24 related questions found

What is triple point of h2o?

Triple point of water:

6.1173 millibars, 0.0060373057 atm). Simply put, the triple point of water is the only temperature at which water can exist in all three states of matter; solid (ice), liquid (water), and gas (water vapour). This temperature is 0.01°C.

What happens at the triple point?

The triple point occurs where the solid, liquid, and gas transition curves meet. The triple point is the only condition in which all three phases can coexist, and is unique for every material. Water reaches its triple point at just above freezing (0.1° C) and at a pressure of 0.006 atm.

What is the degree of triple point?

The temperature and pressure at which a substance can exist in equilibrium in the liquid, solid, and gaseous states. The triple point of pure water is at 0.01°C (273.16K, 32.01°F) and 4.58 mm (611.2Pa) of mercury and is used to calibrate thermometers. Compare critical point.

What is the degree of freedom for a water system?

At any given temperature, there is one and only one pressure at which water vapour is in equilibrium with liquid water. Similarly , at any given pressure, there is one temperature at which water vapour is in equilibrium with liquid water. In other words, the system is univariant. i.e,, has one degree of freedom.

Which one of the equation is triple point?

There is no general formula that will allow you to determine the triple point of a substance. Ideally, for a given substance one would need an equation of state to do this. An equation of state would tell, for example, the pressure given the temperature and density.

Which processes occur at the triple point?

At the triple point, all three phases (solid, liquid, and gas) co-exist. The processes that are occurring are condensation and vaporization, sublimation and deposition, and freezing and melting.

What is triple point of water class 11th?

The triple point of a substance is the temperature and pressure at which it can exist in all three states. At triple point, water can exist as liquid water, solid ice, and water vapour state. The triple point of water is almost at approximately 273.1575 K.

What does triple point mean in chemistry?

: the condition of temperature and pressure under which the gaseous, liquid, and solid phases of a substance can exist in equilibrium.

Why is the triple point of water important?

Why is the triple point important? The triple point of water is significant because it is taken as the standard reference point for defining the Kelvin temperature scale. The triple point of water is also used in sealed cells as pressure transfer standards. The triple point of each pure substance is different.

Which of the following describes the triple point of water?

Which of the following describes the triple point of water? The particular value of temperature and the particular value of pressure at which liquid water, solid ice, and water vapor can coexist. To get an ideal gas temperature, which do we do?

What is a point of water?

There are two conventions regarding the standard boiling point of water: The normal boiling point is 99.97 °C (211.9 °F) at a pressure of 1 atm (i.e., 101.325 kPa). The IUPAC recommended standard boiling point of water at a standard pressure of 100 kPa (1 bar) is 99.61 °C (211.3 °F).

What is the degree of freedom of a system with 3 phases and 2 component?

What is the number of components in a system with 3 degrees of freedom and 2 phases? Explanation: C = 2 – 2 + 3 = 3. ... Explanation: F = 2 – 1 + 1 = 2.

What is the degree of freedom of a system with 3 phases and 1 component?

If there is only one component, there are no degrees of freedom (F = 0) when there are three phases. Therefore, in a single-component system, this three-phase mixture can only exist at a single temperature and pressure, which is known as a triple point.

What is the degree of freedom of water system with a mixture of water and ice in equilibrium?

Hence, a system consisting of ice, water and vapour in equilibrium has no degree of freedom i.e. it is a non- variant system. ... Hence, a system consisting of a mixture of gases has three degrees of freedom i.e. it is a trivariant system.

How many components are present for water at the triple point?

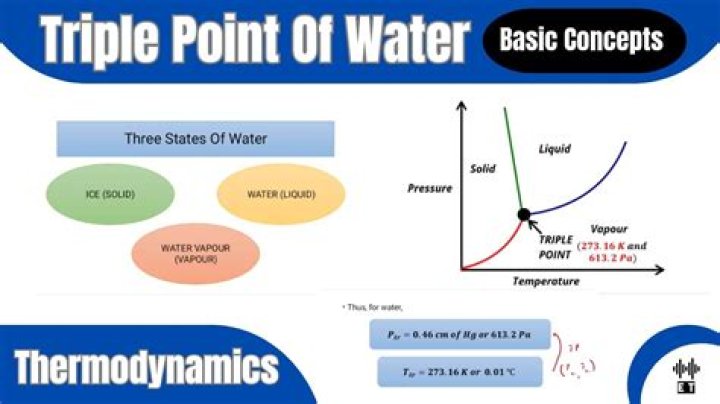

Triple point is the intersection on a phase diagram where three phases coexist in equilibrium. The most important application of triple point is water, where the three-phase equilibrium point consists of ice, liquid, and vapor.

What is triple point and critical point?

The critical point and the triple point of a substance are two important combinations of temperature and pressure. The critical point of a substance lies at the endpoint of the phase equilibrium curve whereas the triple point is the point where the three equilibrium curves meet.

What is the triple point quizlet?

The triple point is the pace on a phase diagram where all three lines converge. At that point the substance exists as a mixture of gas, liquid, and solid all in equilibrium with one another. An increase in temperature will move the substance to the right on the phase diagram into the gas portion of the diagram.

How do you find the triple point of water?

The triple point of water, T₃ = 273.16 K, is the standard fixed-point temperature for the calibration of thermometers. This agreement also sets the size of the kelvin as 1/273.16 of the difference between the triple-point temperature of water and absolute zero.
