Phage display technology is an in vitro screening technique for identifying ligands for proteins and other macromolecules. At the crux of phage display technology is the ability to express peptide or protein sequences as fusions to the coat proteins of a bacteriophage.

How does phage display technology work?

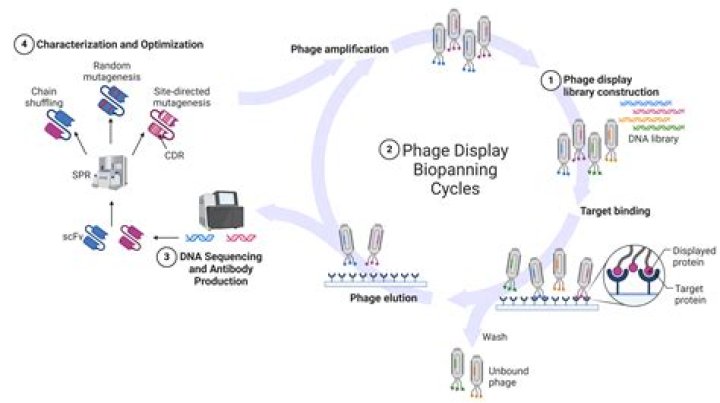

In this technique, a gene encoding a protein of interest is inserted into a phage coat protein gene, causing the phage to "display" the protein on its outside while containing the gene for the protein on its inside, resulting in a connection between genotype and phenotype.

What is the application of phage display?

Phage display has been used in epitope mapping and analysis of protein-protein interactions. The specific ligands isolated from phage libraries can be used in therapeutic target validation, drug design and vaccine development. Phage display can also be used in conjunction with other methods.

Which phage is widely used for phage display technique?

The most common bacteriophages used in phage display are E. coli filamentous bacteriophages (f1, fd, M13) , though T4, T7, and λ phage have also been used.

How are phage display antibodies made?

Types of Antibody Phage Display Libraries

Construction of immunized or naïve libraries involves using reverse transcription polymerase chain reaction (RT-PCR) to prepare the cDNA template. This is followed by the amplification of the repertoire of V_L and V_H genes by PCR, before cloning into the phagemid.

Phage Display Technology - Creative Biolabs (Updated Version)

34 related questions found

How can phage display be used for immunotherapy?

More specifically, genes that encode an antigen of interest can be spliced into the phage genome, allowing antigenic proteins or peptides to be displayed by fusion to phage capsid proteins. Phages therefore present antigens to immune cells in a highly ordered and repetitive manner.

Is phage display directed evolution?

Smith and Winter are both recognized for their work on a lab technique known as phage display in the directed evolution of new proteins—in particular, for the production of antibody therapeutics. ... That protein is then displayed on the surface of the phage.

What is a phage display vector?

Phagemid display vector. A “typical” phagemid display vector contains origins of replication for double-stranded DNA and ssDNA synthesis (plasmid and filamentous phage origins), an antibiotic resistance gene providing selection of transformed bacteria and a fusion gene under the control of a regulated promoter.

Why peptides are chosen over antibodies for phage display?

In this context, small peptides have many advantages over antibodies: lower immunogenicity, easier and less expensive production, higher attainable surface density (larger number of peptides per surface unit and consequently higher avidity of such a conjugate), and minor contribution to the increase in particle size ...

What is phage display vaccine?

The birth of phage display technology has been a turning point in the development of phage-based vaccines. Phage display vaccines are made by expressing multiple copies of an antigen on the surface of immunogenic phage particles, thereby eliciting a powerful and effective immune response.

Does ecoli produce antibodies?

Cytoplasmic expression of antibody fragments in E. coli often results in the production of aggregates within inclusion bodies. ... In order to produce properly folded functional antibodies with disulfide bonds, the individual antibody chains must be transported to the oxidizing environment of the bacterial periplasm.

Why helper phage is used in antibody production?

The helper phage carries all genes necessary for infection, replication, assembly, and budding and therefore provides the phagemid, which primarily carries the gene encoding the G3P-scFv fusion protein, with the proteins needed for amplification.

How do I create a phage display library?

A phage antibody library is created by cloning these repertoires as fusion proteins with a minor coat protein of bacteriophage (the gene 3 protein) (10–12). Each resulting phage has a functional antibody protein on its surface and contains the gene encoding the antibody incorporated into the phage genome.

What are MAB drugs?

Monoclonal antibodies (MABs) are a type of targeted drug therapy. These drugs recognise and find specific proteins on cancer cells. There are many different MABs to treat cancer. They work in different ways to kill the cancer cell or stop it from growing.

What is a bacteriophage and what does it do?

A bacteriophage (/bækˈtɪərioʊfeɪdʒ/), also known informally as a phage (/ˈfeɪdʒ/), is a virus that infects and replicates within bacteria and archaea. The term was derived from "bacteria" and the Greek φαγεῖν (phagein), meaning "to devour".

What kind of virus is bacteriophage?

A bacteriophage is a type of virus that infects bacteria. In fact, the word "bacteriophage" literally means "bacteria eater," because bacteriophages destroy their host cells. All bacteriophages are composed of a nucleic acid molecule that is surrounded by a protein structure.

Which phase is widely used for phage display technique?

Biopanning usually repeats 3 to 5 times to isolate specific antibodies with high affinity to target [47]. Different in vitro and in vivo models have been described for biopanning among which selection of phages based on antigen coated on solid phase is most common [12].

What is phage display peptide library?

Phage display is a selection technique in which a library of peptide or protein variants is expressed as a genetic fusion to a bacteriophage coat protein. ... Individual variants with the desired binding property can then be identified by simply sequencing the DNA contained within each selected phage.

Who discovered phage display?

Phage display was first described by George P Smith in 1985, who deployed it as a method to identify a gene against which he had raised antibodies. The technique was taken further by Greg Winter and John McCafferty at the Laboratory of Molecular Biology in Cambridge, UK, and Richard Lerner and Carlos F.

How does ribosome display work?

Ribosome display is a technique used to perform in vitro protein evolution to create proteins that can bind to a desired ligand. The process results in translated proteins that are associated with their mRNA progenitor which is used, as a complex, to bind to an immobilized ligand in a selection step.

What are the major coat proteins in M13 phage that are used in phage display?

The M13 DNA is coated by major coat protein pVIII which has 2,700 copies in the mature phage and has 50 amino acid residues. The pVIII is coded by a single gene with the same name (gVIII). The minor coat proteins include pIII and pVI at one end and pVII and pIX at the other end of the phage.

How does mRNA display work?

mRNA display is a display technique used for in vitro protein, and/or peptide evolution to create molecules that can bind to a desired target. ... The mRNA-protein fusions that bind well are then reverse transcribed to cDNA and their sequence amplified via a polymerase chain reaction.

What is phage display and why is it useful for directed evolution?

Since its introduction in 1985, phage display has had a tremendous impact on the discovery of peptides that bind to a variety of receptors, the generation of binding sites within predefined scaffolds, and the creation of high-affinity antibodies without immunization.

What was the first enzyme to evolve?

In a paper published in the journal Nature Chemical Biology, the research team details the ancestral line that resulted in the emergence of an enzyme called cyclohexadienyl dehydratase, which is involved in transporting substances around the body.

What did Frances Arnold discover?

Arnold is credited with pioneering the use of directed evolution to create enzymes (biochemical molecules—often proteins—that catalyze, or speed up, chemical reactions) with improved and/or novel functions.
