Napier published his version in 1617. printed in Edinburgh, dedicated to his patron Alexander Seton. Using the multiplication tables embedded in the rods, multiplication can be reduced to addition operations and division to subtractions. Advanced use of the rods can extract square roots.

How is an abacus different from Napier's rods?

Explanation: Not only does the abacus have uses for many different cultures but it also has uses for the blind such as performing addition, subtraction, division, multiplication, square root, cubic root. ... -Napier's bones was invented to help you with multiplication.

How do you use Napier's Rod?

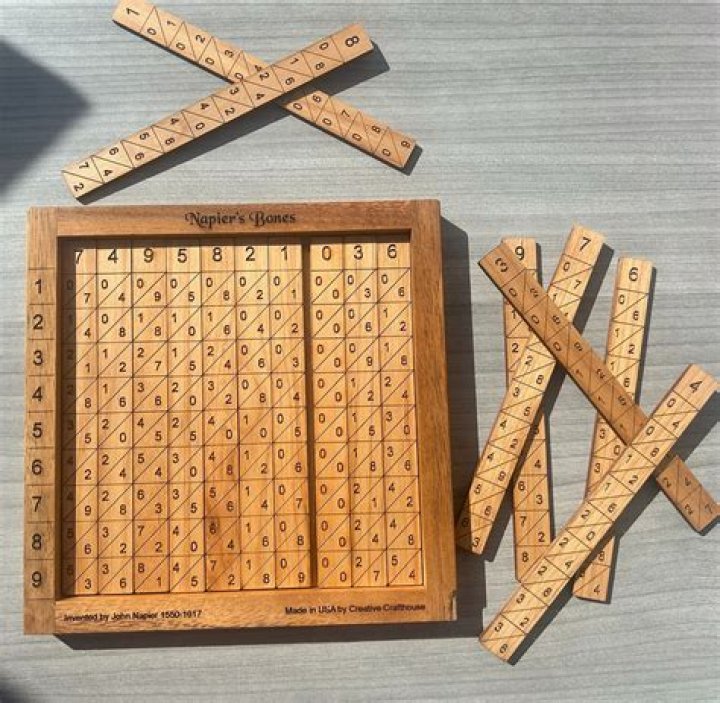

We can use Napier's bones to multiply any two numbers. E.g. For 75 × 3, place the multiplier, the '7' and the '5' bone side by side (for 75) as shown below. To use the above Napier's bones to calculate 3 × 75, sum the numbers along the slanted diagonals of the combined bones using the row applying to the multiplier.

Why is it called Napier's bones?

These slips are written on the surface of ten rods, later on called Napier's rods (the best sets of Napier's numbering rods were made of ivory, so that they looked like bones, which explains why they are now known as Napier's bones).

What are the shortcomings of the Napier bones?

Disadvantages of Napier's bone: It became tedious when the multiplication has to be done with big numbers. It was a much elaborate setup. It was made up of 200 rods placed in a special box.

Napier's Bones Long Division

18 related questions found

On what principle does slide rule work?

A slide rule works by adding or subtracting the numerical exponents of numbers for multiplication or division, respectively. Thus, numbers to be multiplied or divided are converted to their logarithmic values and their exponents are added or subtracted.

What did Leibniz build?

Step Reckoner, a calculating machine designed (1671) and built (1673) by the German mathematician-philosopher Gottfried Wilhelm von Leibniz.

For what operation did John Napier use Napier's bones or Napier's rods )? Group of answer choices?

Napier's bones is a manually-operated calculating device created by John Napier of Merchiston, Scotland for the calculation of products and quotients of numbers. The method was based on lattice multiplication, and also called 'rabdology', a word invented by Napier.

When did the abacus stop being used?

The introduction of the Hindu-Arabic notation, with its place value and zero, gradually replaced the abacus, though it was still widely used in Europe as late as the 17th century. The abacus survives today in the Middle East, China, and Japan, but it has been largely replaced by electronic calculators.

What is Napier bone computer?

Napier's bones are a manually-operated calculating device created by John Napier of Merchiston, Scotland for calculation of products and quotients of numbers.

How does Napier's bone work?

By placing "bones" corresponding to the multiplier on the left side and the bones corresponding to the digits of the multiplicand next to it to the right, and product can be read off simply by adding pairs of numbers (with appropriate carries as needed) in the row determined by the multiplier.

Is a way of performing multiplication and division using mechanical rods?

In 1617, shortly before his death, Napier developed a mechanical method for performing multiplication and division. This method, known as "Napier's bones," was based upon manipulation of rods with printed digits. The rods were made of bone, ivory, wood, or metal.

How much is an old slide rule worth?

These can run close to $1,000 in good condition. Whatever you do, be sure any slide rule you buy is fully intact and working, as finding replacement parts for a specific model (especially the cursor) can be next to impossible.

Are slide rules still used?

Slide rules are still commonly used in aviation, particularly for smaller planes. They are being replaced only by integrated, special purpose and expensive flight computers, and not general-purpose calculators. ... Some wrist watches designed for aviation use still feature slide rule scales to permit quick calculations.

What are the disadvantages of Abacus?

What were the disadvantages of the Abacus?

• You cant learn abacus without a tool.
• You need to learn the abacus tool before using it.
• You cant perform complex calculations.
• Using Abacus one cant keep a track of results if they are performing multiple calculations.

Who invented Napier rods?

The Scot, John Napier, invented these strips (originally made from bone) about 400 years ago to help calculate multiplication and division.

Who has invented abacus?

The type of Abacus most commonly used today was invented in China around the 2nd century B.C. However, Abacus-like devices are first attested from ancient Mesopotamia around 2700 B.C.!

When were invented Napier rods?

John Napier, the inventor of logarithms, also invented this aid to calculation known as 'Napier's Bones' in 1617. The 'bones' consist of a set of rectangular rods, each marked with a counting number at the top, and the multiples of that number down their lengths.

What is Russian peasant multiplication?

Russian peasant multiplication is an interesting way to multiply numbers that uses a process of halving and doubling without using multiplication operator. The idea is to double the first number and halve the second number repeatedly till the second number doesn't become 1 .
