What does a wind turbine winglet do? Winglets reduce induced drag at the turbine blade tips, which is the point where high pressure and low pressure air mixes together. This mixing action causes vortexes to form in the moving air, which causes drag and reduced aerodynamic efficiency.

What are the wings on a wind turbine called?

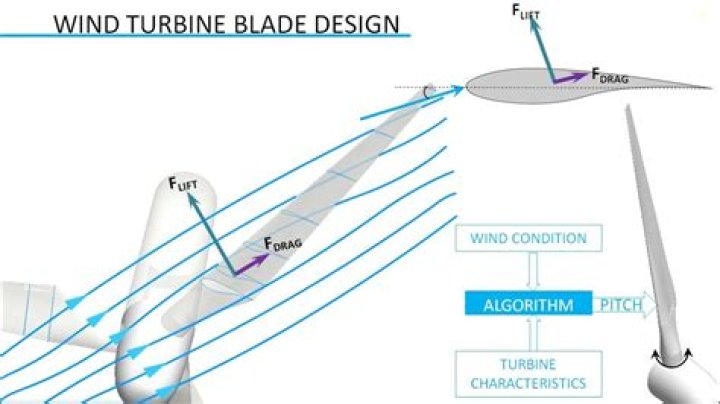

Rotor Blades - The rotor blades of a wind turbine operate under the same principle as aircraft wings. One side of the blade is curved while the other is flat.

Why are wind turbine blades shaped like wings?

Generally, wind turbine blades are shaped to generate the maximum power from the wind at the minimum construction cost. ... Its believed that by slightly curving the turbine blade, they're able to capture 5 to 10 percent more wind energy and operate more efficiently in areas that have typically lower wind speeds.

Why do wind turbines have three wings?

Having fewer blades reduces drag. But two-bladed turbines will wobble when they turn to face the wind. ... With three blades, the angular momentum stays constant because when one blade is up, the other two are pointing at an angle. So the turbine can rotate into the wind smoothly.

How many wings does a wind turbine have?

The vast majority of wind turbines currently being installed have three blades.

Why Do Wind Turbines Have Three Blades?

40 related questions found

Why are wind turbines white?

White is the obvious color choice as it reflects harmful UV rays and their subsequent heat. Protecting all of the internal components from heat damage is paramount and white paint is responsible for this which helps to keep maintenance costs low. The turbines are usually built on highly-visible, yellow foundations.

Why are there no 4 blade wind turbines?

The extra cost of a fourth blade would not be worthwhile. The reason for this is that the air stream is under no obligation to pass through the rotor – it can diverge around it. The proof of the pudding is in the eating – the vast majority of the world's wind turbines have three blades.

Why do wind turbines catch fire?

Wind turbines catch fire primarily due to electrical or mechanical faults leading to ignition which spreads to the surrounding plastics and fibreglass nacelle. ... However, an electrical fault at these components can produce arc flashes or sparks, which can surround plastics in the cabinet and result in a fire.

Why are wind turbines blades so thin?

"There is only so much energy that a wind turbine can extract from the air stream entering the area swept by the blades. If the blades are broader, their aspect ratio (the length to the breadth) is lower, which makes them less aerodynamically efficient.

Are more blades on a wind turbine better?

The number of blades affected the rotation of the wind turbine. The results showed that by using more blades in the wind turbine, the wind turbine is easier to rotate at lower wind speeds, but a greater number of blades causes lower performance and higher torque [18].

Why do wind mills and paper fans rotate?

Its engineers work to minimize noise while the fan rotates at low speed (for safety reasons) and to keep the construction costs, and therefore the purchase price, low.

What are the 5 main parts of a wind turbine?

A wind turbine consists of five major and many auxiliary parts. The major parts are the tower, rotor, nacelle, generator, and foundation or base.

What does the shaft do in a wind turbine?

Wind turbines operate on a simple principle. The energy in the wind turns two or three propeller-like blades around a rotor. The rotor is connected to the main shaft, which spins a generator to create electricity.

Why do some wind turbines not spin?

The most common reason that turbines stop spinning is because the wind is not blowing fast enough. Most wind turbines need a sustained wind speed of 9 MPH or higher to operate. Technicians will also stop turbines to perform routine maintenance or repairs.

What's the difference between a wind turbine and windmill?

Both harness the power of wind to produce electricity, but they differ in the way they do it. ... Windmills are a wind-powered device that converts the energy of wind by means of vanes into mechanical energy. Wind turbines convert the kinetic energy of wind to generate large amounts of electricity to power homes.

Do wind turbines rotate to face the wind?

Wind turbines use an anemometer and a wind vane on top of the nacelle to judge the turbine's best position. When the wind changes direction, motors turn the nacelle, and the blades along with it, to face into the wind (this movement is called yaw).

How do bladeless wind turbines work?

Basically, bladeless technology consists of a cylinder fixed vertically with an elastic rod. The cylinder oscillates on a wind range, which then generates electricity through an alternator system. In other words, it is a wind turbine which is not actually a turbine.

What makes a windmill spin faster?

At 100 feet or more above the ground, the tower allows the turbine to take advantage of faster wind speeds found at higher altitudes. Turbines catch the wind's energy with their propeller-like blades, which act much like an airplane wing. ... The combination of lift and drag causes the rotor to spin like a propeller.

How much do windmill blades cost?

For a 1.5-MW turbine, typical blades should measure 110 ft to 124 ft (34m to 38m) in length, weigh 11,500 lb/5,216 kg and cost roughly $100,000 to $125,000 each. Rated at 3.0 MW, a turbine's blades are about 155 ft/47m in length, weigh about 27,000 lb/12,474 kg and are valued at roughly $250,000 to $300,000 each.

Why do wind turbines overheat?

Rising temperatures - which lead to water evaporation and loss of coolants in critical wind turbine cooling systems – may cause 1.5 MW wind turbines to overheat. ... Loss of those IGBT components due to wind turbines overheating result in significant downtime and hardware losses, to replace.

Can a tornado pick up a windmill?

No matter how strong the winds are, the blades will not spin out of control. "Above 55 mph the turbine shuts off. ... Although a direct hit is bad news for man-made structures and tornadoes have damaged the machines in the past, but in most cases they're made to weather the wind.

At what wind speed do wind turbines shut down?

When the wind is blowing more than 12 miles per hour, each wind turbine can produce 1.5 megawatts of electricity. At reduced wind speeds, electricity production decreases. When wind speed exceeds 45 miles per hour the turbines shut down to protect the machinery inside.

Will adding more blades to a windmill make it go faster?

More blades are more powerful

Rotor efficiency does increase very slightly if four blades are used, rather than three, but the rotor weight would increase and the rotational speed at which peak power would be delivered would drop.

What is a nacelle in a wind turbine?

Abstract. The nacelle of a wind turbine houses the drive train and other tower-top components. It sits on top of a yaw bearing that allows it to rotate as the wind direction changes. The nacelle must be accessible for maintenance and repair work.

Is copper used in wind turbines?

The primary use of copper in wind energy technologies is in the coil windings in the stator and rotor portions of the generator, in the high-voltage power cable conductors, and in the transformer coils. Copper is vital to the electrical grounding system for wind turbine farms.
