A well pump doesn't need protection from the ground. The equipment ground is connected to the well pumps. GFCI protection isn't always superior to proper grounding and bonding.

Does a submersible pump need GFCI protection?

Ground fault protection is now required for submersible pumps, not a GFCI protected circuit.

Should a well pump be on its own breaker?

Yes, well pumps should be on a dedicated circuit.

What size breaker do I need for a well pump?

Most submersible well pumps are 230 volts and require a 2 pole circuit breaker (2 individual circuit breakers connected together).

What needs to be GFCI protected?

GFCI protection is required for 125-volt to 250-volt receptacles supplied by single-phase branch circuits rated 150 volts or less to the ground. GFCI receptacles are required in bathrooms, garages, crawl spaces, basements, laundry rooms and areas where a water source is present.

How Electrical Circuit Breakers and GFCIs Protect a Home | This Old House

39 related questions found

Does GFCI have to be first in line?

Re: Does GFCI Have to Be First In Line? Yep, GFCI first receptacle outside, and feed others from that. You 'should' not have more than 1 GFCI on a circuit, although it would still work, it would be a waste of a GFCI !

When did GFCI become mandatory?

GFCI receptacles were required in houses starting in 1971. Originally they were only required at the exterior of the house and by swimming pool equipment. Over the years, GFCI receptacles have been required in more locations such as garages, bathrooms, kitchens, etc.

How many amps should a well pump draw?

A 240 volt, 1 horsepower well pump draws 10 amps of current. When the pump starts, it can draw up to 35 amps, but only for 5–10 seconds.

Are well pumps 110 or 220?

As mentioned earlier, it is important to consider the type of power your well pump equipment requires. Most residential pumping equipment is single phase 230 volts, however, some small pumps in the USA may use 120 volts single phase. Larger pumping installations may require 208, 230 volt or 480 volt 3-phase power.

Does a well pump need a neutral?

Neutral (white) isn't used in this kind of circuit. Ground (green or bare) is necessary for safety. It sounds like the cable that was used to wire the pump had a white wire instead of a green (or bare) one.

Does a water pump need to be on its own circuit?

Just like most motor-driven appliances like a furnace or air compressor, a water pump consumes increased electrical current as the pump motor starts. This start-up current can demand nearly all of the capacity for an electrical circuit and therefore requires its own dedicated circuit.

Does a well pump need to be hardwired?

Unfortunately no. Unlike many of your appliances that plug into an electrical outlet, your well pump is hard-wired into your home's electrical circuits.

Will a 3500 watt generator run a well pump?

In addition, remember that you may need to run a well pump or sump pump. These have high starting power requirements (over 2,000 watts each), so you can probably only run one or the other on a 3,500-watt generator.

How do you ground a submersible well pump?

Proper grounding of submersible pumps may be accomplished in either of two ways: a) use of a metal pipe from the pump discharge head all the way to the pitless adapter (continuous metal path to the well casing) or, b) if plastic pipe is used, a separate ground wire of the same size as the supply conductors should be ...

What is a GFPE breaker?

Ground-fault protection of equipment (GFPE) is defined in the National Electrical Code (NEC) [1] in Article 100 as “a system intended to provide protection of equipment from damaging line-to-ground-fault currents by operating to cause a disconnecting means to open all ungrounded conductors of the faulted circuit.

How do you tell if your well pump is 120 or 240?

If you have a 2 wire 240v pump the two wires can be any color and it doesn't matter which goes on what pigtail; which are usually both black. If it's a 120v pump the wires are usually black and white and bare but can be any color.

What size breaker do I need for a 220v well pump?

The manual for your pump probably recommends a breaker size. For a 1/2 HP submersible pump, a 15 amp 2 pole breaker would be normal. You can run 12 AWG, but unless the run is very long, 14 AWG is sufficient. Bigger wire would let you switch to a bigger pump later if you wanted.

How do you tell if a pump is wired for 110 or 220?

When In Doubt, Which Voltage Should You Choose? If you know your pump's voltage is 110V, you know the wire gauge and number of breakers you need. If your pump is 220V, you know you need two breakers and heavier wiring.

How many amps does a 230 volt well pump use?

A 1 HP submersible pump engine will draw a 3.2-amper current if it is a single-phase motor at 230 volts of voltage. If it is a three-phase motor at 440 volts, it will draw a maximum 1.7-amper current.

Will a 5000 watt generator run a well pump?

5000 watt is plenty to run the well, a furnace, refrigerator, some lights, small tv, and even make coffee.. I have a 4400 watt gen. and do all that with no problems at all.. Well pumps have a a very high start up current.

Why does my well pump breaker keep tripping?

If your pump continues to trip your circuit breaker immediately after each time you flip it on, it is likely there is something wrong with the pump's motor. However, the problem may be the wiring leading to the pump itself. A professional will be able to tell you if it is the wiring or if you need a new motor.

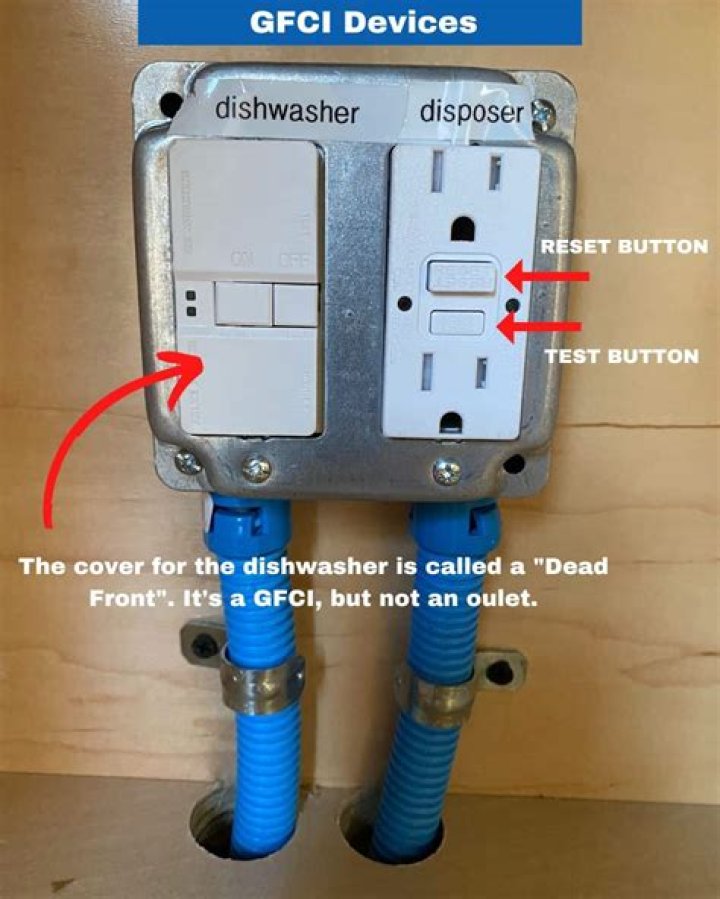

What is the difference between a GFCI and a GFI?

There is no significant difference at all. When discussing GFCI receptacles, common conversations use the terms GFCI ground fault circuit interrupter outlets or simply a ground fault interrupter (GFI). They are generally counted as the exact same thing.

Do I need GFCI on every outlet?

The NEC requires GFCIs on all exterior and bathroom receptacles (another term for outlets). GFCIs are also required on all receptacles serving kitchen countertops. ... In bedrooms, living rooms, and other areas where water fixtures are not found, regular outlets are fine—and they are still installed in today's new homes.

Can I put a GFCI anywhere in a circuit?

You can replace almost any electrical outlet with a GFCI outlet. Correctly wired GFCIs will also protect other outlets on the same circuit. ... The electrical code also requires GFCIs in unfinished basements, garages, most outdoor receptacles and places where construction activity occurs.

Can you have 2 GFCI outlets on the same circuit?

Yes, you can use two or more GFCI outlets on the same circuit without any problem at all. The only downside to this is that if one of your GFCI outlets goes down, the others will probably go down as well. ... It is well worth putting two or more GFCI outlets on the same circuit, and it's quite common.
