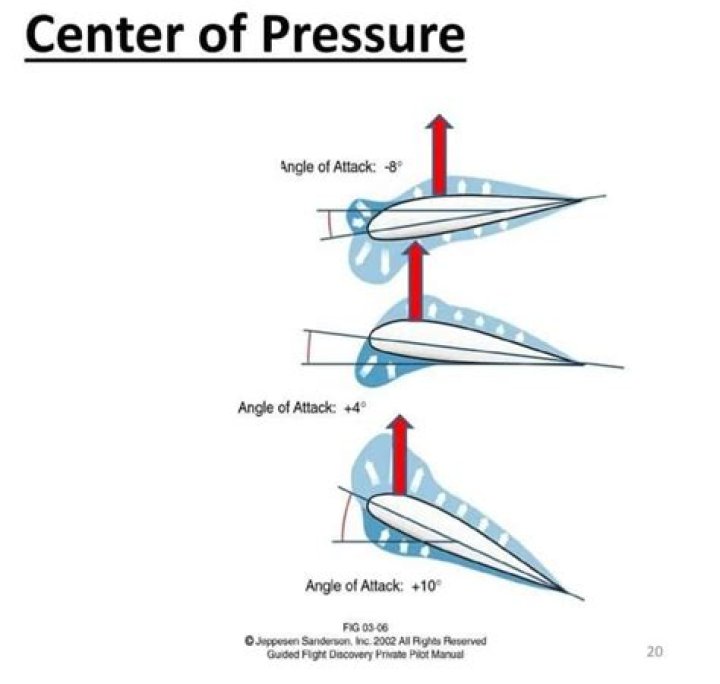

A camber airfoil that is at a POSITIVE Angle of Attack. The Center of Pressure (CP) moves to the rear of the wing at a low Angle of Attack. As the Angle of attack increases the center or pressure will move forward.

Where is the center of pressure for cambered airfoil?

For a conventionally cambered airfoil, the center of pressure lies a little behind the quarter-chord point at maximum lift coefficient (large angle of attack), but as lift coefficient reduces (angle of attack reduces) the center of pressure moves toward the rear.

What is the center of pressure on an airfoil?

Center of Pressure The center of pressure is the point where the total sum of a pressure field acts on a body. In aerospace, this is the point on the airfoil (or wing) where the resultant vector (of lift and drag) acts.

Which way will the center of pressure move when the angle of attack of a cambered airfoil is increased?

A negative camber will reduce lift and result in a center of pressure location ahead of the 25% point. Increasing the angle of attack will now shift the center of pressure back, again towards the 25% point.

Where is the aerodynamic center of the cambered airfoil?

Within the assumptions embodied in thin airfoil theory, the aerodynamic center is located at the quarter-chord (25% chord position) on a symmetric airfoil while it is close but not exactly equal to the quarter-chord point on a cambered airfoil.

Airfoil Design

25 related questions found

Are center of pressure and aerodynamic center the same?

Center of pressure of an aircraft is the point where the Lift acts. Aerodynamic center is the point in the wing where the pitching moments are constant.

How do you find the aerodynamic center of an airfoil?

Thus if x0/c = n, CJ — Cm and is constant. Hence xQ/c = n gives the location of the aerodynamic center as a fraction of the chord based on the approximate airfoil theory. If n = 0.25, the aero- dynamic center is at the quarter-chord point.

How do you find the center of pressure airfoil?

Taking the sum of the average value times the distance times the distance segment divided by the sum of the average value times the distance segment will produce the center of pressure. There are several important problems to consider when determining the center of pressure for an airfoil.

Why center of pressure is below the center of gravity?

When a body is immersed in a fluid,it experiences a pressure and this pressure increases with the depth.As pressure is higher at deeper levels the lower body experiences more pressure as compared to upper body. Therefore, the centre of pressure in immersed body is below gravity.

What happens to the center of pressure when angle of attack is increased?

For any given angle of attack, the center of pressure is the point where the resultant force crosses the chord line. ... In the airplane's normal range of flight attitudes, if the angle of attack is increased, the center of pressure moves forward; and if decreased, it moves rearward.

What is total pressure and Centre of pressure?

The total pressure is defined as the force exerted by a static fluid on a surface (either plane or curved) when the fluid comes in contact with the surface. ... The center of pressure is defined as the point of application of the resultant pressure on the surface.

How the Centre of pressure for a symmetrical aerofoil differs to that of a cambered aerofoil?

In a cambered airfoil, the aerodynamic center and center of pressure are not at the same place, so the lift created also generates a moment at the aerodynamic center. In a symmetric airfoil, the aerodynamic center and the center of pressure are at the same place, so you do not have a pitching moment.

What is center of pressure biomechanics?

In biomechanics, center of pressure (CoP) is the term given to the point of application of the ground reaction force vector. The ground reaction force vector represents the sum of all forces acting between a physical object and its supporting surface.

How do you find the depth of a center of pressure?

In other words, the distance from the pivot to the centre of pressure is the depth to the bottom of the vertical plane, minus one third the depth of the submerged part of the vertical plane. So the centre of pressure on a partially submerged plane will always be one third of d up from the base of the plane surface.

Which principle is used for calculating the center of pressure?

3. Which principle is used for calculating the centre of pressure? Explanation: We balance the moment in order to calculate the position of centre of pressure.

What is the difference between center of gravity and center of pressure?

The center of pressure is the average location of where the pressure force is applied. Think of it like the center of gravity, the location where the average weight of an object is, except this time it is the location of average pressure. The center of pressure is where the forces of lift and drag are exerted.

Can Centre of pressure be above Centre of gravity?

Explanation: Centre of pressure always lies below the centre of gravity. In certain cases it may coincide but it can never be above the centre of gravity.

Which is deeper the center of pressure or the center of area?

✓ Discussion and Conclusion: • From our results that the center of pressure is always deeper than the center of area.

What is CP in aerodynamics?

The pressure coefficient is a dimensionless number which describes the relative pressures throughout a flow field in fluid dynamics. The pressure coefficient is used in aerodynamics and hydrodynamics. Every point in a fluid flow field has its own unique pressure coefficient, .

How do you find the mean aerodynamic center?

Mean Aerodynamic Chord

1. Identify the center of gravity location, in inches from the datum.
2. Identify the leading edge of the MAC (LEMAC), in inches from the datum.
3. Subtract LEMAC from the CG location.
4. Divide the difference by the length of the MAC.
5. Convert the result in decimals to a percentage by multiplying by 100.

What is the definition of the aerodynamic center AC of an airfoil?

The Aerodynamic Center is defined as that location ac. x about which the pitching. moment doesn't change with angle of attack.

What kind of stability occurs when the center of gravity is behind the center of pressure?

A restoring force exists for this model rocket because the center of pressure is below the center of gravity. If the center of pressure is above the center of gravity, the lift and drag forces maintain their directions but the direction of the torque generated by the forces is reversed.

Why does a cambered airfoil produce a pitching moment when it produces lift?

In a cambered airfoil, the aerodynamic center and center of pressure are not at the same place, so the lift created also generates a moment at the aerodynamic center.
