Q=m \times c \times \Delta T Here, Q is the heat supplied to the system, m is the mass of the system, c is the specific heat capacity of the system and \Delta T is the change in temperature of the system. The transfer of heat occurs through three different processes which are, Conduction, Convection, and Radiation.

How do you calculate heat exchanger?

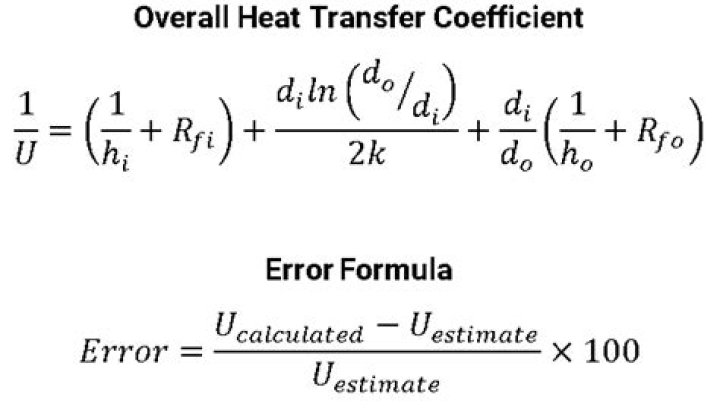

4.0 – HEAT EXCHANGERS CALCULATIONS:

1. The main basic Heat Exchanger equation is: Q = U x A x ΔTm =
2. The log mean temperature difference ΔTm is: ΔTm =
3. (T1 – t2) – (T2 – t1) = °F.
4. T1 = Inlet tube side fluid temperature; t2 = Outlet shell side fluid temperature;
5. ln (T1 – t2) (T2 – t1)

What is Q MCP ∆ T?

Q = mc∆T. Q = heat energy (Joules, J) m = mass of a substance (kg) c = specific heat (units J/kg∙K) ∆ is a symbol meaning "the change in"

What is C in Q MCT?

Specific heat capacity is the amount of heat that must be added or removed from a unit mass of a substance to change its temperature by one degree Celsius. The formula of specific heat is given by: Heat energy = Mass of substance × Specific heat × Change in temperature.

What does M stand for in heat transfer?

= the individual convection heat transfer coefficient for each fluid (W/(m²•K)) = the wall thickness (m).

Heat Exchanger Example - Design

23 related questions found

How do you calculate heat flow?

To calculate the amount of heat released in a chemical reaction, use the equation Q = mc ΔT, where Q is the heat energy transferred (in joules), m is the mass of the liquid being heated (in kilograms), c is the specific heat capacity of the liquid (joule per kilogram degrees Celsius), and ΔT is the change in ...

How do I calculate Btu for heat exchanger?

A BTU calculation is performed by placing temperature elements in both the inlet and outlet piping of the heat exchanger. Using the difference of these two temperatures and multiplying by the flow rate, a BTU calculation is obtained.

How do I calculate specific heat?

Calculate specific heat as c = Q / (mΔT) . In our example, it will be equal to c = -63,000 J / (5 kg * -3 K) = 4,200 J/(kg. K) . This is the typical heat capacity of water.

How do you use the specific heat formula?

How do I calculate specific heat? Q = m*s*dT, where Q = heat, m = mass, s = specific heat, and dT is the change in temperature (T2 - T1). You can use this formula to calculate the specific heat. In the case of gases, just replace the mass by moles of the gas.

What is the formula of heating effect of current?

Hence the heating effect produced by an electric current, I through a conductor of resistance, R for a time, t is given by H = I²Rt. This equation is called the Joule's equation of electrical heating.

What is thermal energy formula?

The thermal energy formula is given by, Q = mcΔT. = 6 x 0.030 x 20. Q = 3.6 J. Example 2.

What is BTU formula?

Formula. BTU = Flow Rate In GPM (of water) x (Temperature Leaving Process - Temperature Entering Process) x 500.4*Formula changes with fluids others than straight water.

How do you calculate the heat transfer of an evaporator?

1. Heat balance. Heat available per kg of steam. = latent heat + sensible heat in cooling to 91°C. = 2.164 x 10⁶ + 4.186 x 10³(134 - 91) ...
2. Heat-transfer area. Temperature of condensing steam = 134°C. Temperature difference across the evaporator = (134 - 91) = 43°C. ...
3. Heat balance.

How do I calculate HVAC BTU?

The approximate amount of energy used to cool a square foot of your home is roughly 25 BTUs, so multiply the number of square feet in your home by 25 to get the base BTU measurement.

What is heat equation in mathematics?

In mathematics and physics, the heat equation is a certain partial differential equation. ... The theory of the heat equation was first developed by Joseph Fourier in 1822 for the purpose of modeling how a quantity such as heat diffuses through a given region.

What is the formula for the capacity of evaporator?

Explanation: Evaporator Capacity is defined as the amount of water in kg evaporated in a 1hour. Evaporator economy can find by using Evaporator Capacity and Steam Consumption parameters. ... Explanation: Economy of an evaporator is defined as, E = Capacity/Consumption = (30/45) x 100 = 66.7 = 67%.

How is an evaporator a heat exchanger?

Evaporator is the machine inside the air conditioner. Heat exchanger is the machine outside the air conditioner. If heating, exchange the internal and external machines.

How is gpm calculated in HVAC?

The GPM formula is GPM = Air side Btu ÷ (measured water Δt x 500).

How do I calculate GPM?

The formula to find GPM is 60 divided by the seconds it takes to fill a one-gallon container (60 / seconds = GPM). Example: The one-gallon container fills in 5 seconds, breakdown: 60 divided by 5 equals 12 gallons per minute.

How do you calculate kW to heat a room?

Room Heat Calculator

1. Take the measurements of your room in feet or metres. The multiply the Length of the room x the Width of the room x the Height of the room.
2. The multiply this figure by a factor of 6 for BTU's or by 0.0606 for kW.
3. The result is now the mimimum heat output required to heat this room.

What is energy formula?

The energy stored in an object due to its position and height is known as potential energy and is given by the formula: P.E. = mgh. Unit. The SI unit of energy is Joules (J).

How do you calculate heat from friction?

The heat flux at the contact surface equals the rate at which work is being done against friction: Q=F⋅v. This heat flux goes into both the bodies.

What is the formula to calculate heat energy required to raise the temperature of any substance?

Specific heat is the amount of heat required to raise one gram of any substance one degree Celsius or Kelvin. The formula for specific heat is the amount of heat absorbed or released = mass x specific heat x change in temperature.
