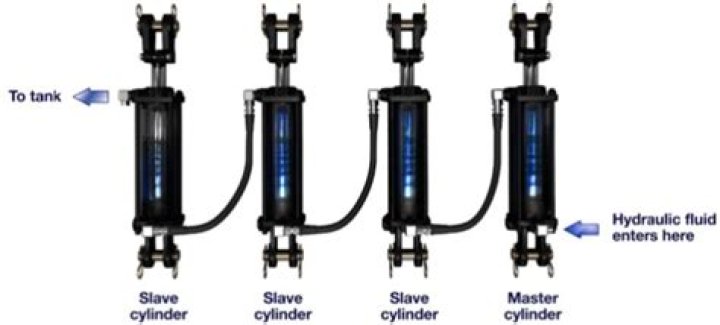

A Rephasing Cylinder System enables a pair (or multiple) cylinders to extend and retract in very near unison. ... A rephasing cylinder system will consist of a master cylinder and 1 or more slave cylinders. These cylinders operate evenly to raise and lower the implement to the desired working depth.

How do you bleed phasing cylinders?

BACK BLEED THE SYSTEM (This is done by bleeding the air out of the hoses working on the retract side) Crack the hose connection at the rod end od the second smallest cylinder. 6. REPEAT THIS STEP If more than two cylinders are in the one phasing system working on the third smallest cylinder rod end to bleed from.

What is a phasing hydraulic cylinder?

Thanks to the advent of hydraulic equipment, a set of phasing cylinders will do this for you. ... They do this by having decreasing cylinder areas and a special internal groove or a valve that allows oil to bypass the piston when it's at the end of the stroke and re-phase the cylinders downstream.

How do you sync pneumatic cylinders?

Synchronizing air cylinders is done by means of Solenoid operated valves (in this case 3/2 way),these will either allow air to flow into the cylinders at the same moment, or allow the air to exhaust at same moment (in neither case do you have the assurance that cylinders speeds will be exactly the same.

How does a double acting hydraulic cylinder work?

A double acting cylinder uses two lines and gives you the full power of your hydraulic system in both directions. If you need to press and lift with the same arm or another device, a double acting cylinder is ideal. This versatile option gives you power in two directions for a multi-use piece of equipment.

6 Secrets for Synchronizing Cylinders

37 related questions found

How does a flow control valve work?

Flow control valves control the volumetric rate of the fluid that flows through them. Generally, changing the size of the orifice is how the flow rate is set and adjusted. A tapered needle moving in and out of an orifice or opening and closing the gap inside a ball valve changes this rate.

What is the best method to synchronize cylinders?

The most accurate way to synchronize hydraulic cylinders is with servovalves. Servovalves independently control each cylinder with electronic position feedback, and compare each actuator's position with all others. This is the most expensive way to synchronize cylinders but the most accurate.

How does a hydraulic flow divider work?

A flow divider accepts a flow of oil under pressure, usually from a hydraulic pump, and divides it into two streams of equal (or unequal) flow volume for operation of two independent branch circuits from one pump, or for synchronization of two identical cylinders.

How does a regenerative hydraulic circuit work?

A Regenerative circuit is a system that is used to speed up the extension stroke of the double acting single rod hydraulic cylinder. The output is connected to the input in the directional control value. By this concept, increase in velocity of the piston and decrease the cycle time.

What is the operational difference between synchronization in parallel and series?

In parallel operation, the motors produce high torque at half speed. Connected in series, the situation is reversed, i.e. with the same oil supply, the torque is halved, but the speed is doubled.

What is the function of flow divider?

A device called a flow divider splits flow and compensates for pressure differences in most cases. A flow divider can split flow equally, unequally, and into more than two paths. One design maintains a constant flow for one outlet and directs any excess flow to a second outlet.

How does a rotary gear flow divider work?

How Do Geared Flow Divider Work? Geared flow dividers work by having gears that are connected and work in unison built into one housing. Because the gears are joined mechanically, they can rotate at equal speeds which results in equal flows from their outlet ports.

How is rapid cylinder advance created in a regenerative cylinder advance circuit?

Regenerative circuits allow a cylinder to be advanced more rapidly than it could be with pump flow alone. To achieve this, oil from the rod end of a cylinder is added to the pump flow to the blind end, increasing the rate of advance.

What is the difference between meter in and meter out circuit?

1) In the meter in circuit the flow rate goes into the cap end of the cylinder while in the meter out circuit the flow rate comes out of the rod en of the cylinder. 2) The meter in circuit can only be used for positive loads and the meter out circuit can be used for both positive and negative loads.

What does the numbers in 4 3 valve mean?

Specification. Directional control valves are generally specified using the number of ports and the number of switching positions. ... A hypothetical valve could be specified as 4-way, 3-position direction control valve or 4/3 DCV since there are four ports and three switching positions for the valve.

Do flow control valves reduce pressure?

The Model 772-U Flow Control and Pressure Reducing Valve is a hydraulically operated, diaphragm actuated control valve with two independent functions. It maintains both pre-set maximum flow and reduces higher upstream pressure to lower constant downstream pressure, regardless of varying demand or upstream pressure.

How does priority valve work?

Priority valves are used to provide a hydraulic function in a load sensing system with a priority flow.In principle, they operate like a 3-way flow control valve that always supplies the actuator that has priority with the required flow rate, and passes the remaining flow to other actuators.

Are flow control valves directional?

Restrict flow in one direction; 1-2. Free flow in opposite direction; 2-1. The terms speed control and flow control are often used interchangeably to identify a valve with the primary function of limiting the velocity of an actuator.

Why do cylinders retract faster than extends?

Routing pressurized fluid into the rod end of a double-acting cylinder causes the piston rod to retract. ... Because total cylinder volume is less with the cylinder fully retracted (because of rod volume) than when the cylinder is fully extended, a cylinder retracts faster than it extends (assuming equal flow rates).

What is the difference between single acting and double acting cylinders?

What is the difference between double acting and single acting cylinders? Double-Acting – have a port at each end, supplied with hydraulic fluid for both the retraction and extension. Single-Acting – hydraulic fluid enters through a port at one end of the cylinder, which extends the rod by means of area difference.

What is the difference between the single acting cylinder and a double-acting cylinder in the electro pneumatic control system?

The main difference between single and double-acting pneumatic cylinders is that single-acting cylinders feature one port and double-acting cylinders feature two. This, in turn, impacts their functionality within your system.

How do divider valves work?

Hydraulic flow dividers are very high precision hydraulic components that split the oil into predefined ratio, that could be the same for all the sections or different. This function is due to gears in series, able to divide the inlet oil flow into several flows, with the same or different ratios. ... split the oil flow.
