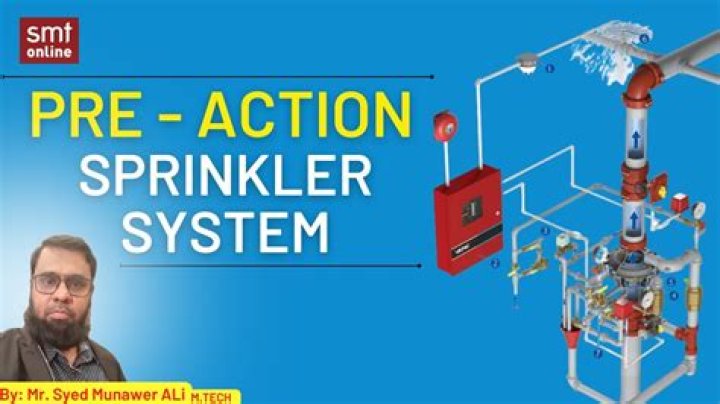

Pre-action valves are electrically operated valve that is activated by heat, smoke or flame. ... A fire is detected, and the pre-action valve opens, allowing water to flow into the sprinkler pipes. At this point, the sprinkler system is now a wet pipe sprinkler system. Each fire sprinkler head is opened individually.

What are the three basic categories of preaction sprinkler systems?

There are three different types of preaction systems, a non-interlock system, a single interlock system, and a double interlock system. The main difference between preaction systems and wet and dry pipe systems is that a specific event (or events) must happen before water is released into the system.

What is fire sprinkler pre-action?

Pre-Action fire sprinkler system uses concept of having dry pipe sprinkler system. Water is withheld from sprinkler piping by a Pre-Action Valve. ... Thus the systems are effectively designed for water sensitive areas that require protection from inadvertent water flow into the sprinkler system piping.

What is the primary advantage of a pre-action sprinkler system?

Advantages of using pre-action fire sprinkler systems include: The dual action required for water release - The pre-action valve must operate and sprinkler heads must fuse. This feature provides an added level of protection against inadvertent discharge.

How do you test a preaction system?

Check and confirm that deluge valve and accessories are ready for putting the system in service. Confirm that the pressure control valve set to the system required pressure. Check that all sprinklers are free from obstructions. Confirm that check valves are installed at the correct flow direction.

HD PREACTION SYSTEMS

35 related questions found

How does a dry sprinkler head work?

Sprinkler heads in a dry sprinkler system are connected to pipes that are filled with pressurized nitrogen or air. The gas or gas holds back water until a fire is detected. Dry systems are the second most commonly used system.

What happens when the sprinkler head in a preaction system accidentally opens?

It's not uncommon for sprinkler heads to be falsely triggered. Accidental activation often results in costly, irreversible property and water damage. The two-event discharge requirement adds an elevated level of protection from such inadvertent discharges.

What is the use of pre-action system?

Extra detection system (pilot sprinkler or detectors) it choose by provide the more quick detection. Usage Purpose: For preventing the hazards, which is cause from the sprinkler lines or sprinklers explodes.

What is the difference between pre-action and deluge system?

When the system first detects heat or fire the pre-action valve opens. Next, the pipes are flooded with water, dry chemicals, inert gases, or foam. After it's filled, the specific sprinkler head must detect heat or fire to open. Then, the system will work to extinguish the fire in the immediate area.

How does a single interlock preaction system work?

In fire conditions, when the detection system operates, the system control panel energizes the solenoid valve open, causing the deluge valve to open. ... The sprinkler system then fills with water. If any sprinklers have opened, water will flow from the system.

What is a preaction room?

A Pre-action System is primarily for the protection of the building structure. This is also called a dry sprinkler system in that the suppression system is water, but the water is held back out of the room until a smoke/fire event is detected.

What is a pre-action Cabinet?

PREACTION-PAC™ is a Factory Mutual (FM) Approved, fully integrated preaction fire suppression assembly. This preaction cabinet includes a preaction valve, compressor, and control panel providing one complete zone of preaction water sprinkler fire protection.

What type of detectors most common are normally used to activate a preaction system?

Thermal detectors are the most frequently-used releasing devices in preaction and deluge systems.

What is double interlock preaction systems?

A double interlock system has two events that must occur: 1) fire detection from a heat or smoke detector and 2) automatic sprinkler operation. Once one of the above occurs, the pre-action valve operates, allowing water into the system piping, essentially turning a dry system into a wet system.

What is a non interlock preaction system?

A preaction type sprinkler system employs the basic concept of a dry pipe system in that the sprinklers are closed and water is not normally contained within the pipes. ... A non-interlock system requires only one of either event to occur before water is admitted into the system.

What does pre-action mean?

noun. Prior or previous action; action taking place before something.

What is required to activate discharge of a wet sprinkler system?

In order for water to be discharged from the sprinklers, the detection system must be activated and one or more of the sprinklers must also reach its activation temperature. ... For these systems, the piping will not become filled with water until both the sprinkler and detection system are activated.

What is deluge sprinkler system?

A deluge fire protection system has unpressurized dry piping and open sprinkler heads. The system is directly connected to a water supply and when the system is activated, a deluge valve will release the water to all the open sprinkler heads. The valve is opened when activated by a heat or smoke detection system.

Can dust set off sprinklers?

Since fire sprinklers are activated by heat, smoke or dust in the air can't accidentally set them off. ... It's also essential to routinely inspect sprinkler heads for corrosion and debris.

How are sprinklers triggered?

Fire sprinklers work because high heat triggers the sprinkler system. When a blaze ignites, the air directly above it heats rapidly. This hot air rises and spreads along the ceiling. ... When the liquid expands, it shatters its glass confines and the sprinkler head activates.

Do fire sprinklers go off if you hit them?

Myth: Fire sprinklers go off accidentally, causing unnecessary water damage. Fact: Accidental fire sprinkler discharge is extremely rare. One study concluded that home fire sprinkler accidents are no more likely or severe than standard home plumbing mishaps.

How is a dry sprinkler system activated?

In a dry sprinkler system, the activated sprinkler head causes the air pressure in the pipes to drop, opening a dry pipe valve near the system riser that holds back the water. The water floods the pipes and sprays through the open sprinkler, which can take up to 60 seconds.

What is wet pipe sprinkler system?

A wet pipe system is one in which water is constantly maintained within the sprinkler piping. When a sprinkler activates this water is immediately discharged onto the fire.
