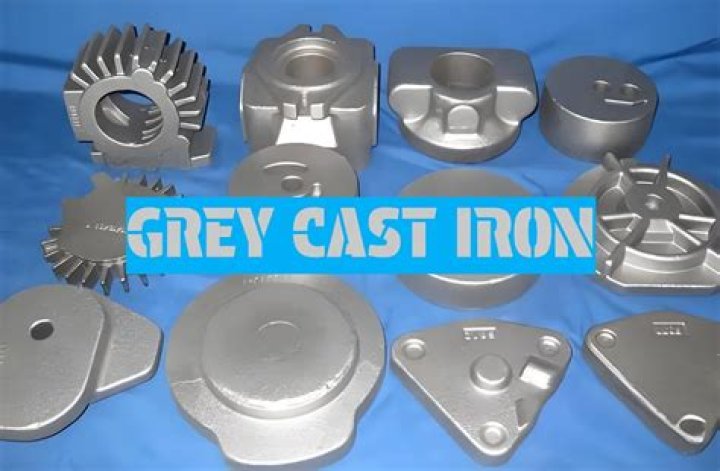

Specifically, what makes grey iron “grey iron,” is the graphite flake structure that is created during the cooling process from the carbon that is in the component. ... In a grey iron casting, you can see little black flakes of graphite. These flakes cause fractures and cause the material to have a grey appearance.

How is white cast iron produced and how is it different from GREY cast iron?

Like gray cast iron, white cast iron features many small fractures. The difference is that white cast iron features cementite below its surface, whereas gray cast iron features graphite below its surface. The graphite creates the appearance of a gray color, while the cementite creates the appearance of a white color.

How is white cast iron formed?

White cast iron is formed when the carbon in solution is not able to form graphite on solidification. White cast irons are hard and brittle; they cannot easily be machined. ... The microstructure of white cast iron contains cementite (white) and pearlite.

Which is harder GREY cast iron or white cast iron?

Hardness and Strength

White cast iron is harder than grey, to the point that it is quite brittle. Grey iron, by contrast, is softer but stronger. The two types are sometimes combined, allowing a piece to be made with a hard outer coating of white iron and a strong core of grey.

What is pig iron?

Pig iron is the product of smelting iron ore (also ilmenite) with a high-carbon fuel and reductant such as coke, usually with limestone as a flux. Charcoal and anthracite are also used as fuel and reductant. Pig iron is produced by smelting or iron ore in blast furnaces or by smelting ilmenite in electric furnaces.

Manufacturing of Grey Cast iron

44 related questions found

What is the chemical composition of cast iron?

Cast iron is one of the oldest ferrous metals in commercial use. It is primarily composed of iron (Fe), carbon (C) and silicon (Si), but may also contain traces of sulfur (S), manganese (Mn) and phosphorus (P). It has a relatively high carbon content of 2% to 5%.

What is cast iron made of?

cast iron, an alloy of iron that contains 2 to 4 percent carbon, along with varying amounts of silicon and manganese and traces of impurities such as sulfur and phosphorus. It is made by reducing iron ore in a blast furnace.

How is chilled cast iron produced?

A chilled iron casting can be produced by adjusting the carbon composition of the white cast iron so that the normal cooling rate at the surface is just enough fast to produce white cast iron while the slower cooling rate below the surface will produce gray iron.

Why is gray cast iron is annealed?

The annealing of gray iron at a temperature high enough to minimize or eliminate massive eutectic carbides softens it to improve machinability, but reduces the grade level approximately to the next lower grade; for example, the properties of a class 40 gray iron (minimum 275 MPa, or 40 ksi, tensile) will be diminished ...

Which is the unique property of cast iron?

Cast Iron is a metal bearing high strength in compression but weak in tension. It is hard and brittle. So, it cannot be forged.

Why is wrought iron called?

Wrought iron is tough, malleable, ductile, corrosion resistant, and easily welded. ... It was given the name wrought because it was hammered, rolled or otherwise worked while hot enough to expel molten slag. The modern functional equivalent of wrought iron is mild steel, also called low-carbon steel.

Is cast iron naturally black?

Take a cast iron skillet off a kitchen shelf, and you should find that the pan is black. ... This process leaves behind a jet black coating that not only stops a pan from rusting but creates a non-stick surface that's easy to cook on. Seasoning is a natural process and requires oil to be heated in the pan.

How is cast iron mined?

The making of cast iron begins with a combination of raw materials. ... Mining pulls most of the iron from iron ores which are rocks found on the outer layers of the earth that contain iron. This iron ore is then converted into various types of iron but first it is processed in a blast furnace to produce pig iron.

Who invented cast iron?

Englishman Abraham Darby is credited with revolutionizing cast iron cookware; in 1707, he patented a method for casting iron into relatively thin pots and kettles, a process that made them cheaper to produce.

Is cast iron ferrous or nonferrous?

Some common ferrous metals include engineering steel, carbon steel, cast iron and wrought iron. These metals are prized for their tensile strength and durability. Carbon Steel – also known as structure steel – is a staple in the construction industry and is used in the tallest skyscrapers and longest bridges.

How is graphite formed in cast iron?

Sulphur in cast irons is known to favour the formation of graphite flakes. The graphite can be induced to precipitate in a spheroidal shape by removing the sulphur from the melt using a small quantity of calcium carbide.

Is there carbon in cast iron?

Cast iron is an alloy with a high carbon content (at least 1.7% and usually 3.0–3.7%), making it relatively resistant to corrosion.

How is iron produced?

The production of iron from its ore involves an oxidation-reduction reaction carried out in a blast furnace. Iron ore is usually a mixture of iron and vast quantities of impurities such as sand and clay referred to as gangue. The iron found in iron ores are found in the form of iron oxides.

How is iron manufactured?

Iron is manufactured in a blast furnace. First, iron ore is mixed with coke and heated to form an iron-rich clinker called 'sinter'. Sintering is an important part of the overall process as it reduces waste and provides an efficient raw material for iron making. Coke is produced from carefully selected grades of coal.

Is cast iron GREY or black?

The silicon in grey cast iron causes the carbon to change into graphite. This causes it to have a dark grey or almost black color. With less silicon, the carbon in white cast iron changes to cementite or iron carbide (Fe₃C).

Why is cast iron discolored?

You're not doing enough cast-iron cooking

While seasoning does wear down with use, the more you use your cast-iron cookware, the better it performs. Every time you use it, you're also adding new molecules of polymerized oil. Over the long haul, your cast-iron will darken and grow shinier.

How is iron made black?

It's a coating. Often 'seasoning' which is just a fancy name for oil that's been heated up to polymerize and form a coating. With cast and wrought iron, they'd traditionally just quench the iron in oil (such as linseed oil, which polymerizes easily) when it was still hot, coating it with little effort.

Can cast iron be welded?

It is possible to weld cast iron, although it can be problematic due to the high carbon content. ... All categories of cast iron except white iron are considered as weldable, although the welding can be significantly more difficult compared with carbon steel welding.

Is cast iron different from pig iron?

The main difference between cast iron and pig iron is that: (A) Cast iron is purest form of iron while pig iron is impure. ... - Pig iron is the iron obtained from the blast furnace and it contains about 4% of carbon as impurity. Along with carbon, Si, P and Mn are also present in pig iron as impurity.

Does cast iron rust?

Why does cast iron rust? ... Without the protective layer of carbonized oil called seasoning, cast iron is susceptible to rust. Even a well-seasoned pan can rust if it's left in the sink to soak, put in the dishwasher, allowed to air dry, or stored in a moisture-prone environment.
