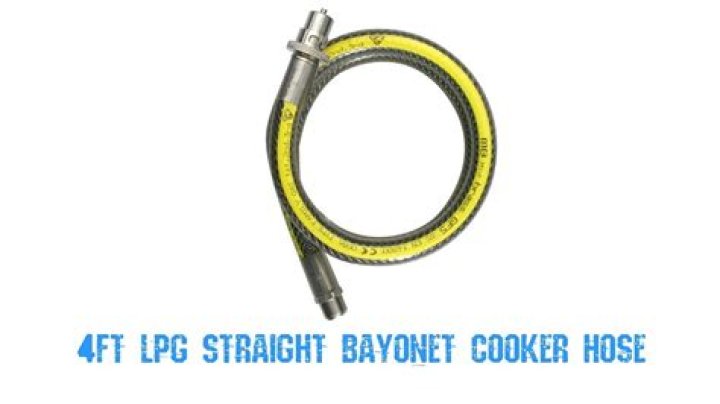

How to connect a bayonet hose to a gas cooker?
Sarah Smith How to connect a gas cooker hose
- Ensure the gas valve is switched off.
- Check whether the gas hose has a rubber ring. ...
- Attach the gas hose to your cooker, using a wrench to tighten.
- Now you can attach the gas hose to the gas supply.
Is it safe to connect a gas cooker with bayonet fitting?
5 Answers from MyBuilder Gas Engineers
Yes this is correct. A bayonet fitting should be 750mm from the floor and facing downwards. Allowing a smooth loop with no strain on the gas hose from the cooker. Although this is not classed as “immediately dangerous” if a new cooker is installed it will need to be rectified.
How do you install a gas bayonet?
A male gas bayonet hose makes the gas bayonet fitting connection by pushing in, with the locking lugs aligning with the engagement slots, and twisting clockwise to lock it in place. For gas bayonet fitting removal, you push in slightly, turn anti-clockwise and then pull the male gas bayonet fitting out.
Can I connect my gas cooker myself?
If you want to fit a gas hob yourself, always remember that you are not allowed to connect the hob unless you are a Gas Safe registered engineer. According to the Gas Safety (Installation and Use) Regulations 1998, you must be competent before working on a gas appliance.
What is a gas bayonet fitting?
A gas bayonet is a wall or floor mounted fitting that provides an easy connection from your external gas supply to your internal gas appliances. Using natural gas to power appliances such as a heater can cost far less annually than a conventional electric heater.
How to disconnect a gas cooker
36 related questions foundCan you leave a gas bayonet fitting?
Yes, gas cookers can be temporarily disconnected by anyone at the bayonet. This is so the cooker can be temporarily moved for access for cleaning.
How do you remove a bayonet gas fitting?
Carefully move the oven away from the wall to reveal the brass. Push down and twist the hose connector to the left with an unscrewing motion. This will remove it from the bayonet fitting. Be cautious with the safety chain which prevents the oven from moving too far away from the wall.
Are all gas cookers bayonet fitting?
What is this? Another important thing to consider with a gas cooker hose is the bayonet mount. Some cookers have a straight bayonet mount while others have an angled bayonet mount. Most gas cooker hoses can be chosen with the straight bayonet or angled bayonet mount.
Do I need a gas engineer to connect a gas cooker?
If you are worried about installing a gas cooker by yourself, don't do it. You have to get a Gas Safe registered engineer into your home regardless of whether you install the cooker yourself or pay them to do it for you.
How do you fit a gas hose to a gas cooker?
How to connect a gas cooker hose- Ensure the gas valve is switched off.
- Check whether the gas hose has a rubber ring. ...
- Attach the gas hose to your cooker, using a wrench to tighten.
- Now you can attach the gas hose to the gas supply.
Can I legally disconnect my gas cooker?
The simple answer however disappointing is NO, the regulations regarding a 'gas way' which this is - can only be undertaken by a gas safe engineer, in a nut shell no one can break-in/disconnect a live gas way without the relevant qualification's.
Can I reconnect my gas cooker?
A gas cooker, on the other hand, is very easy to reconnect, and it can be done by you (the homeowner). This is because most gas cookers have a bayonet fitting, which connects the gas cooker to the mains gas. ... The bayonet fitting MUST face the floor, and your gas cooker must have a retaining chain connected.
Does a bayonet gas fitting need capping?
A bayonet is a perfectly acceptable means of capping a supply to the cooker. ... A self-sealing coupling, e.g. on a cooker connection, does not need to be capped-off, except where there is a significant risk of interference (such as by a child).
What height should a gas bayonet be?
Due to space one has recommended putting the bayonet about 150mm from the floor. This is so the range cooker goes back as far as it can.
How much does it cost to cap a gas pipe UK?
Gas pipe capping should cost around £500 but can depend on access to the gas pipe and the complexity of the job.
How do gas bayonet fittings work?
A bayonet gas fitting is a device that is attached to a fixed wall or floor inside your home (or outside for a BBQ). It allows the easy connection of a gas appliance. ... To disconnect, the end of the hose is pushed slightly into the bayonet, and then twisted anti-clockwise to unlock and pull the male fitting out.
What are the regulations for fitting a gas cooker?
All gas cookers must have 20mm of free space on either side or as stipulated in the manufacturer's instructions. Brand new gas cookers installed in flats must feature a 'Flame Supervision Device'. This detects whether a flame has been extinguished and will then automatically turn off the gas supply to the burners.
