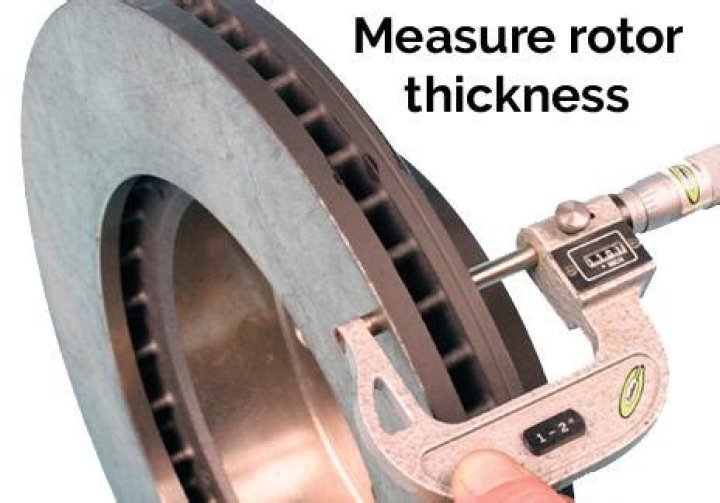

Use a micrometer at the thinnest point on the surface of the rotor where it meets the pads to measure the minimum operational thickness. If your rotor needs to be cut or has worn passed this thickness, you'll need new rotors. You may also discover your rotor has Disc Thickness Variation.

What tool measures rotor thickness?

This micrometer is used for precisely measuring thickness of brake rotor surfaces.

Can a micrometer measure rotor thickness?

The rotor thickness should be measured using a micrometer. The thickness should also be gauged before and after the rotors have been turned, to check for proper thickness or depth specification. Here is a step-by-step guide on how to measure rotor thickness: 1.

How are rotors measured?

1. ID = Inside Diameter: Measure from inside edge to inside edge. ... OD = Outside Diameter: Measure from outside edge to outside edge.

How thick should my rotors be?

The standard solid rotor is 12mm (0.472 inches) thick. It should not be ground to less than 10.5mm (0.413 inches). The standard vented rotor is 20mm (0.787 inches) thick and should be ground to no less than 18.5mm (0.728 inches).

How to measure Brake Rotor Lateral Runout and Minimum Thickness

41 related questions found

How do you tell if your rotors are too thin?

When a rotor is too thin, it overheats and warps, leading to an annoying vibration or pedal pulsation. When rotors were thicker, they could take the wear from the brake pads, be machined and still have enough metal left to dissipate the heat.

What is the minimum thickness for brake discs?

What is the thickness of a brake disc? Recommended Thickness 3.2 millimeters is the bare minimum of thickness you want on your brake pads. Ideally, your pads will be over 12 millimeters in thickness. When you purchase new ones, you always want to measure them just to make sure they are the ideal size.

Is there a minimum thickness for brake discs?

All new brake discs are 45 mm thick. Providing continuous cracks are not apparent, minimum brake disc thickness is 37 mm. Brake discs should be replaced in pairs.

Which things are important to check when measuring rotor thickness to determine if they need replaced?

• Measuring Rotor Thickness. It's impossible to tell how much life is left on the brake rotors by simply looking at it. ...
• Visible Cracks. One of the most obvious ways to check when your rotors need to be replaced is through visible cracks. ...
• Grooves. ...
• Rotor Edge Lip. ...
• Heat Spots. ...
• Rust. ...
• Warped Rotors.

What type of micrometer is used to measure a brake rotor?

Anytime Tools Disc Brake Rotor Caliper Digital Electronic Gauge Gage Micrometer 0-2.5"/0.0005"

Are thicker rotors better?

Increasing The Size Of Your Rotors Improves Heat Dissipation

The biggest benefit of increasing the size of your rotors is improved heat dissipation. When you use your brake rotors and pads hard (for example, at the track), they heat up faster. As a result, these parts will have a hard time cooling down.

Which of the following tools should be used to measure brake rotor runout?

The rotor runout dial indicator is used primarily to measure rotor runout. Likewise, it may be used to measure arbor runout on the bench lathe, wheel bearing play, and hub runout. Even so, the tool must be used to correctly in order to get an accurate reading.

What is acceptable brake thickness?

Ideally, your brake pads should be thicker than 6.4 mm (¼ inches) for proper functioning. If it's thinner than this, consider getting a replacement soon. Most car mechanics also agree that the bare minimum brake pad thickness is 3.2 mm (⅛ inches).

What is rotor thickness variation?

Brake rotor thickness variation, or disc thickness variation (DTV), causes uneven wear to brake rotors, disc-shaped automotive parts that are squeezed between brake pads to slow or stop a vehicle's wheels.

What happens when rotors get too thin?

Brake rotors start out being much thinner than ever before. ... The challenge is that the thickness of a brake rotor enables it to dissipate the heat that's created during braking. When a rotor is too thin, it overheats and warps, leading to an annoying vibration or pedal pulsation.

How long will 7mm brake pads last?

No worries to replace until it gets down below 2mm. The wear indicator will cause the brakes to squeal as a reminder. 7mm should last for years on the rear and the front would depend on your driving habits.

How thick are Shimano rotors?

Shimano rotors are made 1.8mm thick and should be replaced when the thickness has been reduced to 1.5mm. Since 2010, the 1.5mm minimum recommended rotor thickness has been printed on Shimano rotors.

Do rotors get thinner?

But they still wear down over time. ... As your rotors wear and get thinner, they also lose mass - mass needed to absorb and dissipate heat. The strength of the rotor is also affected when it gets too thin and it could fail. Rotors get too thin, not only because they are thinner to begin with, but due to other factors.

What is the average lifetime of brake rotors?

So how long do brake rotors last? It depends. A variety of factors, like your vehicle size, driving style and brake quality, contribute to the lifetime of your brakes. Typically, brake rotors last between 30,000–70,000 miles.

How thin is too thin for brakes?

Brake Pads Appear To Be Thin. For the braking system on your automobile to function properly, the brake pads should not be allowed to get thinner than ¼ inch. Brake pad thickness plays an essential role in road safety. Brake pads that measure 1⁄8 inch in thickness have reached the end of their recommended wear limit.

Does the size of the rotor matter?

Although larger brake rotors are more powerful and durable in their performance, when descending very steep terrain, they can be too powerful for flatter, flowing trails or terrain that isn't tacky. In dusty summer riding conditions, a 203mm brake rotor will react with great immediacy to even the slightest lever input.
