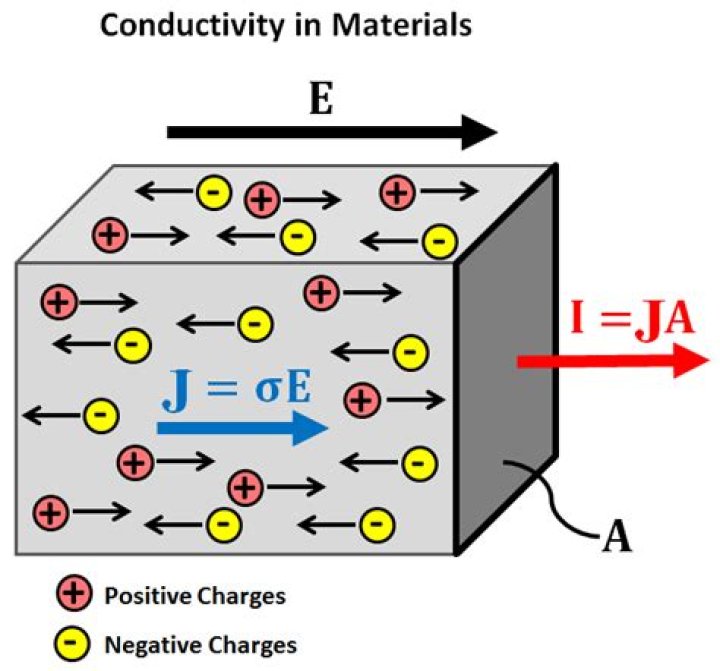

Electrical conductivity is a property of the material itself (like silver), while electrical conductance is a property of a particular electrical component (like a particular wire). Electrical conductivity can be defined as how much voltage is required to get an amount of electric current to flow.

Is conductance same as conductivity?

Conductance is the extrinsic property, whereas the inherent property is conductivity. This suggests that conductance is an object's property depending on its quantity/mass or physical form and scale, whereas conductivity is the object's intrinsic property of the substance.

How do you convert conductivity to conductance?

The symbol for conductance is G (heaven knows why) and the unit of conductance is the siemens, S, named after the 19th century German engineer and industrialist Ernst Werner von Siemens. It used to be called the mho, which is just ohm written backwards. R = V/I so conductance is just the inverse of this: G = I/V.

What is definition of conductivity?

: the quality or power of conducting or transmitting: such as. a : the reciprocal of electrical resistivity. b : the quality of living matter responsible for the transmission of and progressive reaction to stimuli.

What do you mean by electrical conductivity?

Conductivity is the measure of the ease at which an electric charge or heat can pass through a material. A conductor is a material which gives very little resistance to the flow of an electric current or thermal energy. ... Electrical conductivity tells us how well a material will allow electricity to travel through it.

Conductance and Conductivity differences (Physics 2019)

29 related questions found

What is conductance in electrical engineering?

Conductance (also known as electrical conductance) is defined as the potential for a substance to conduct electricity. Conductance is the measure of how easily electrical current (i.e. flow of charge) can pass through a material. Conductance is the inverse (or reciprocal) of electrical resistance, represented as 1/R.

What is conductance in electrochemistry?

Conductance is defined as a degree to which an object or a conductor can conduct the electric current through it. The conductance is a property which is labeled as G. Conductance is the reciprocal of resistance as it is calculated as a ratio of current 'I' passing to the potential difference 'V'.

What is equivalent conductance?

The equivalent conductance of an electrolyte is defined as the conductance of a volume of solution containing one equivalent weight of dissolved substance when placed between two parallel electrodes 1 cm apart, and large enough to contain between them all of the solution.

What is the difference between current and conductance?

Current is expressed as the movement of charge across the membrane in time (coulombs / second). ... If either the driving force or conductance is zero then there is no current. Conductance is an electrical term that is the reciprocal of resistance (G = 1/R) and has units of siemens.

What is specific conductivity equivalent conductivity?

- Equivalent conductivity is the specific conductance of an aqueous solution containing 1 equivalent weight of electrolyte dissolved in the solution. - Hence, it is defined as the conducting power of all the ions produced by dissolving 1gm equivalent of an electrolyte in the solution.

What is the difference between equivalent conductivity and equivalent conductance?

Conclusion. The conductivity of a volume of solution containing one equivalent of an electrolyte is called equivalent conductivity. The conductance property of a solution containing one mole of electrolyte, or a function of a solution's ionic strength or salt concentration, is known as molar conductivity.

What do you mean by specific conductivity and equivalent conductivity?

Equivalent Conductivity is defined as the conducting power of all the ions produced by dissolving one gram equivalent of an electrolyte in solution. It is expressed as and is related to specific conductance as. ( M is Molarity of the solution)

What is conductivity cell?

A conductivity cell is a device that is comprised of electrodes that sense the electrical conductivity of a substance, such as water. ... To get a conductivity reading, the cell constant and the conductance of the material have to be multiplied.

What is conductivity in chemistry class 12th?

It is the measure of ability of an electrolyte to conduct electricity. - Conductivity is expressed in Siemens per meter in SI unit (S/m). ... In the case of weak electrolytes, they dissociate into ions to a much lesser extent when compared to that of strong electrolyte.

What does conductivity mean in chemistry?

4.11. 1.2 Conductivity. Conductivity is a measure of the ability of an aqueous solution to carry an electric current. ... The property of conductivity is expressed through measurements of conductance, which is defined as the reciprocal of resistance.

What is conductance and conductivity and their units?

Conductivity (or specific conductance) of an electrolyte solution is a measure of its ability to conduct electricity. The SI unit of conductivity is Siemens per meter (S/m).

How is electrical conductance?

Electrical conductance measures how easily electricity flows through electrical components for a given voltage difference. Electrical conductance is a property of a particular electrical component (like a particular wire), while conductivity is a property of the material itself (like silver). ...

What is conductivity example?

The definition of conductivity is the ability to transmit heat, sound or electricity. An example of conductivity is heat transferring from hot pot of soup to a metal ladle sitting in the pot.

What determines conductivity?

There are three main factors that affect the conductivity of a solution: the concentrations of ions, the type of ions, and the temperature of the solution.

What is an example of electrical conductivity?

Metals and plasma are examples of materials with high electrical conductivity. The element that is the best electrical conductor is silver -- a metal. Electrical insulators, such as glass and pure water, have poor electrical conductivity.

What is conductance and specific conductance?

Specific Conductance is the ability of a substance to conduct electricity. ... Conductance means the flow of current through the liquid conductor. Specific conductance is defined as the conducting capacity of a solution of the dissolved electrolyte and the whole solution is being placed between two electrodes are 1 sq.

What is a specific conductance and molar conductance explain?

Specific conductance = Conductance × cell constant. Molar conductance: It is defined as the conductance due to 1 mol of the electrolyte present in volume V of the solution. For electrolyte concentration =c M. Molar conductivity, Λm​=cκ​ It has a unit of Sm2mol−1.

How do you measure equivalent conductance?

It can be calculated using the following formula: λ = kV; Where the term 'V' denotes the volume (in millilitres) that contains one gram equivalent of the given electrolyte.
