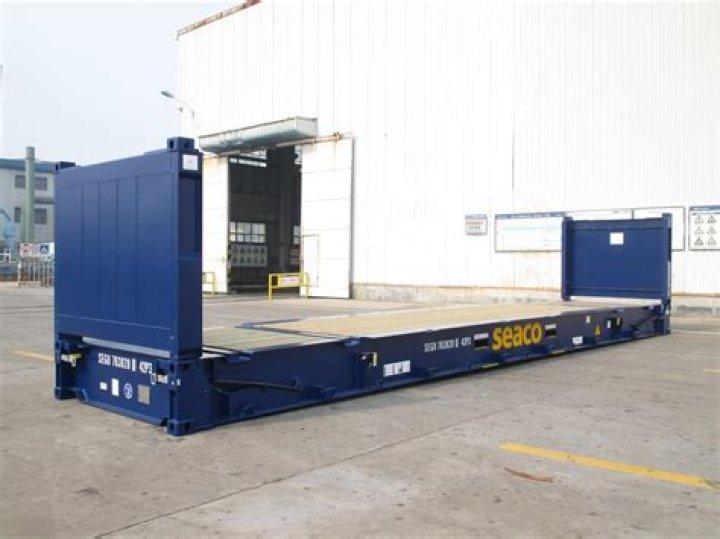

Flat Rack Containers are a type of specialized containers having walls only at the short end of the container. This is why these containers are employed when the cargo needs to be loaded from the top or sides due to different dimensions or abnormal loads.

Does flat rack container have seal?

Therefore, there is no need for a security seal, either indicative or barrier-type; in fact, there is no logical location to affix a seal. The cargo on a flat rack is by design of the container exposed to fresh and seawater. There is no weather protection per se as tarpaulins or other cover materials are not supplied.

What is a 20 flat rack container?

Flatracks consist of a floor structure with a high loading capacity composed of a steel frame and a softwood floor and two end walls, which may either be fixed or collapsible. ... Some types of 20\' flatracks have forklift pockets.

What is OT container?

Open top containers have an open top covered by a tarpaulin instead of a solid roof. This enables oversized cargo such as timber and scrap metal to be loaded from the top. Open top containers normally also have end doors, like closed containers, to give flexibility for loading and unloading.

What is the meaning of flat rack container?

Flat Rack Containers are a type of specialized containers having walls only at the short end of the container. This is why these containers are employed when the cargo needs to be loaded from the top or sides due to different dimensions or abnormal loads.

All about Containers for Logistics! Size and Features of Dry/Reefer/Open Top/Flat Rack/ISO Tank.

33 related questions found

Can you stack flat racks?

Flat racks are used for transporting goods with unique shapes as these can stick out through the open sides. Flat racks can be loaded from the top or the sides. ... These flat racks can be easily stacked. Flat racks which have a solid wall which is not foldable is called a fixed end flat rack container.

What is dry container?

Dry containers are a type of standard shipping or cargo container that accommodates dry, non-temperature-sensitive shipments. They are typically available in 40′ size, although there are 20′ options available. The containers consist of strong steel to resist wind, rain and saltwater.

What are the types of containers?

11 Most Common Container Types

• General Purpose Containers. A general purpose container is also known as a "dry container". ...
• Flat Rack Containers. ...
• Open Top Containers. ...
• Double Door Containers. ...
• High Cube Containers. ...
• Open Side Containers. ...
• ISO Reefer Containers. ...
• Insulated Containers.

What is a 40 flat rack?

Flatracks consist of a floor structure with a high loading capacity composed of a steel frame and a softwood floor and two end walls, which may either be fixed or collapsible. ... 40\' flatracks have gooseneck tunnels at each end.

What is a reefer shipping container?

What is a reefer container? Reefer containers or refrigerated containers are used to transport goods requiring temperature-controlled conditions in transit. ... Reefer containers are fitted with a refrigeration unit which is connected to the electrical power supply on board the ship.

What is a seal no?

Seal number is an identification number of a container seal. Each container seal has an individual identification number.

What happens when container seals are broken?

A container seal that has been broken or tampered with does not necessarily mean a theft has taken place. It may simply mean that there has been a customs inspection. If this happens in the US, US customs will usually put on a new seal and mark it so you know it's been opened by the US customs.

How do you use a seal on a container?

The left door closes first, followed by the right door. It is thus common practice to place the container seal on the right door of the container, as it will be opened first. As can be seen the image above, the seals should thus be placed on any of the 3 lock rods on the right door (circled in red).

What is CFS and ICD?

Inland Container Depots (ICDs) and Container Freight Stations (CFSs) are also called dry ports as they handle all customs formalities related to import and export of goods at these locations. ... ICD and CFS offer services for containerization of break- bulk cargo and vice- versa.

What is wet cargo?

Some cargo needs to be classified as Wet Cargo, as it contains liquid, emits liquid or by nature may produce liquid. This can be all types of liquids, frozen or fresh meat/fish, live animals, and any goods producing liquid. These types of cargo are classified as wet cargo: ... Liquid in watertight containers.

What is high cube container?

High-cube containers are similar in structure to standard containers, but taller. In contrast to standard containers, which have a maximum height of 2591 mm (8'6"), high-cube containers are 2896 mm, or 9'6", tall. High-cube containers are for the most part 40′ long, but are sometimes made as 45′ containers.

Can we load container without CSC plate?

The convention requires that any container used for international transport must be fitted with a valid safety approval plate (CSC Plate). The CSC plate is fastened to every shipping container at the time of manufacture and is typically riveted to the outside of the left door.

Why do all containers end in U?

It is always three capital letters and the code is registered with the Bureau of International des Conteneurs in France. The U at the end is the letter for all standard cargo containers. ... This is literally used to check the container number to keep it accurate.

What is CSC Certificate for container?

Container certification is provided in accordance to CSC requirements for international overseas transport. Shipping containers and intermodal equipment are everywhere: making sure they are fit for service is a responsibility and a global on-going task.

What is Fr in shipping?

FR is the abbreviation for Flat Rack containers, suitable for transporting out of gauge elements.

What is a double door container?

Double Door Containers have two sets of double cargo doors on both ends, as opposed to just double doors on one end only. This means that the container – with two points of entry – creates a tunnel and offers additional access for the storage and transport of vehicles, machinery and bulky items.

What is 40ft FR?

The 40ft Flat Rack container is available with walls that are fixed, or folding ends. They are commonly used for the stowage of heavy loads and/or load sizes which simply don't fit into containers that have fixed walls.
