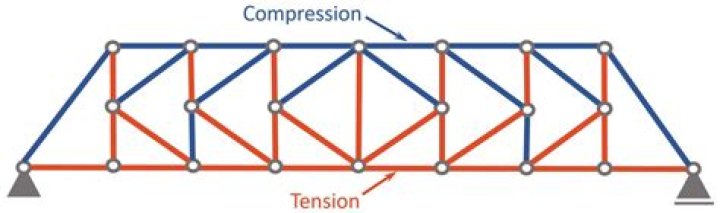

The K Truss design was a variant from the Parker truss design. ... The idea of the K truss is to break up the vertical members into smaller sections. This is because the vertical members are in compression. The shorter a member is, the more in can resist buckling from compression.

What is K truss?

: a building truss in which the vertical member and two oblique members in each panel form a K.

What are the 5 types of truss bridges?

What are the Types of Trusses?

• Pratt Truss.
• Warren Truss.
• K Truss.
• Howe Truss.
• Fink Truss.
• Gambrel Truss.

What are the advantages of K truss bridge?

Its advantages included: efficiency because of the longer diagonal members are in tension and the shorter vertical members are in compression; however, it also had its disadvantages: members in tension fail because the member is stressed to materials maximum stress capacity.

What are the types of truss bridges?

The four most basic categories in the truss bridge arena are the Warren, Pratt, Howe and K Truss. Each utilises the basic 'triangle' design, characteristic of the truss bridge, however, each varies slightly in the way they distribute compression and tension.

Truss Bridge | Types of Truss Bridges | Analysis of Trusses | Method of Joints | Bridge Engineering

34 related questions found

What are the 3 types of trusses?

Common types of roof truss

• King Post truss. A king post truss is typically used for short spans. ...
• Queen Post truss. A queen post truss is typically a vertical upright with two triangles either side. ...
• Fink truss. ...
• Double Pitch Profile truss. ...
• Mono Pitch Truss. ...
• Scissor Truss (also known as Vaulted Truss) ...
• Raised Tie Truss.

Which truss type is the strongest?

Of the three bridge designs I tested (warren-truss, pratt-truss, k-truss) the warren-truss held the most weight. I tested each design 5 times and the average for the warren was 43.6 pounds. The k average was 31 pounds and the pratt design was the weakest and averaged 13.6 pounds.

What is AK truss used for?

The idea of the K truss is to break up the vertical members into smaller sections. This is because the vertical members are in compression. The shorter a member is, the more in can resist buckling from compression.

Who invented the K truss?

The K-Truss truss configuration was invented by Phelps Johnson, president of the Dominion Bridge Company of Montreal, Quebec, Canada, as part of the design effort for the second (existing) Quebec Bridge. Phelps was born in 1849 in the United States and worked for the Wrought Iron Bridge Company for a time.

Who invented the Warren Truss?

Patented in 1846 by British engineers James Warren and Willoughby Monzoni, the Warren truss and its variants constitute a commonly built metal truss bridge type of the nineteenth and early twentieth centuries.

Is Pratt or Howe Truss better?

The Pratt truss disspipated the load more efficiently than the Howe truss, although both truss bridges dissipated the force significatnly more effectively than the beam bridge. In addition, the Pratt truss deflected the least and held the most, on average, while the beam bridge deflected the most and held the least.

What is a Pratt bridge?

Most bridge historians and bridge textbooks state that a bridge with a single tension diagonal in each panel and a compression vertical with parallel chords and an inclined end post is a Pratt Truss. ... Pratt Truss, even number of panels.

What is the strongest bridge type?

An arch bridge is stronger than a beam bridge, simply because the beam has a weak point in the center where there is no vertical support while arches press the weight outward toward the support.

What is the characteristic of AK truss?

noun Architecture. a truss having in each panel two diagonals running from the ends of one post to the center of the adjacent post, the arrangement being symmetrical about the center of the truss.

What is truss design?

A truss is a structure that consists of members organised into connected triangles so that the overall assembly behaves as a single object. ... Trusses consist of triangular units constructed with straight members. The ends of these members are connected at joints, known as nodes.

How does a Pratt truss work?

The basic form of Pratt truss includes triangular truss design whose diagonal members slope toward the center of the bridge. When under load, this design makes diagonal members feel tension (the force that expands the object apart), while vertical members feel suspension (the force that pushes objects into one self).

What is the strongest truss bridge design?

In this experiment we have tested which type of truss bridge is the strongest, yet uses the least amount of material. Two of the most used truss bridges are of the Pratt and Howe design. Through our experiment it was found that the bridge design that minimized the maximum compression force was the Howe Bridge.

Which truss bridge holds the most weight?

The arch bridge can hold the most weight, the deck bridge can hold an average amount of weight, and the beam bridge can hold the least amount of weight.

What are the pros and cons of truss bridges?

A truss bridge requires high levels of ongoing maintenance. Truss bridges may provide high levels of support, but the additional components and connections of the bridge mean it requires high levels of maintenance as well. Every part of the bridge plays an important role in how the span functions.

What is the weakest type of bridge?

We did further research after our experiment and learned that beam bridges are actually the weakest of all bridges and suspension bridges are the strongest.

What is the second strongest type of bridge?

The Henderson Waves is the second strongest bridge, is located in Singapore, opened in March 2008. The other strongest bridges of the world include the Sundial Bridge, the Millau Viaduct, the Python Bridge and many others.

What is a Pratt roof truss?

: a truss having vertical members between the upper and lower members and diagonal members sloping toward the center.
