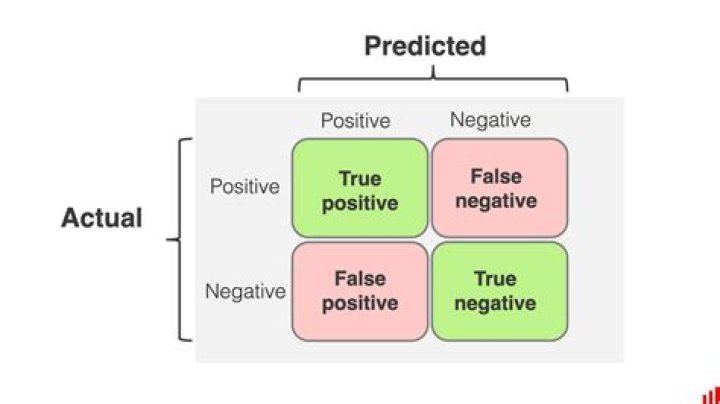

In the field of machine learning and specifically the problem of statistical classification, a confusion matrix, also known as an error matrix, is a specific table layout that allows visualization of the performance of an algorithm, typically a supervised learning one.

What is confusion matrix with example?

A confusion matrix is a table that is often used to describe the performance of a classification model (or "classifier") on a set of test data for which the true values are known. ... The classifier made a total of 165 predictions (e.g., 165 patients were being tested for the presence of that disease).

What is confusion matrix in simple terms?

A confusion matrix is a summary of prediction results on a classification problem. The number of correct and incorrect predictions are summarized with count values and broken down by each class. This is the key to the confusion matrix.

What is confusion matrix and why it is important?

Confusion matrices are used to visualize important predictive analytics like recall, specificity, accuracy, and precision. Confusion matrices are useful because they give direct comparisons of values like True Positives, False Positives, True Negatives and False Negatives.

What is confusion matrix in statistics?

A confusion matrix, in predictive analytics, is a two-by-two table that tells us the rate of false positives, false negatives, true positives and true negatives for a test or predictor. ... A confusion matrix is also known as an error matrix, and it is a type of contingency table.

Machine Learning Fundamentals: The Confusion Matrix

19 related questions found

Why is it called a confusion matrix?

The name stems from the fact that it makes it easy to see whether the system is confusing two classes (i.e. commonly mislabeling one as another).

How do you remember the confusion matrix?

Confusion Metrics

1. Accuracy (all correct / all) = TP + TN / TP + TN + FP + FN.
2. Misclassification (all incorrect / all) = FP + FN / TP + TN + FP + FN.
3. Precision (true positives / predicted positives) = TP / TP + FP.
4. Sensitivity aka Recall (true positives / all actual positives) = TP / TP + FN.

What is the confusion matrix used for?

A Confusion matrix is an N x N matrix used for evaluating the performance of a classification model, where N is the number of target classes. The matrix compares the actual target values with those predicted by the machine learning model.

What can we learn from confusion matrix?

Confusion Matrix is a useful machine learning method which allows you to measure Recall, Precision, Accuracy, and AUC-ROC curve. Below given is an example to know the terms True Positive, True Negative, False Negative, and True Negative.

What are benefits of confusion matrix?

The confusion matrix is the most persuasive tool for predictive analysis in machine learning.
...
Benefits of Confusion Matrix

• It gives information about errors made by the classifier and the types of errors that are being made.
• It reflects how a classification model is disorganized and confused while making predictions.

How do you interpret a confusion matrix in python?

What is a Confusion Matrix?

1. Positive (P): Observation is positive (eg. is a dog).
2. Negative (N): Observation is not positive (eg. is not a dog).
3. True Positive (TP): Outcome where the model correctly predicts the positive class.
4. True Negative (TN): Outcome where the model correctly predicts the negative class.

What is F1 score in confusion matrix?

F1 score is the harmonic mean of precision and recall and is a better measure than accuracy. In the pregnancy example, F1 Score = 2* ( 0.857 * 0.75)/(0.857 + 0.75) = 0.799.

Which of the following best describes a confusion matrix?

Which of the following best describes a confusion matrix? It is a table summarizing the prediction results.

What is a confusion matrix and how it is used to evaluate the effectiveness of the model?

A confusion matrix shows the number of correct and incorrect predictions made by the classification model compared to the actual outcomes (target value) in the data. The matrix is NxN, where N is the number of target values (classes). Performance of such models is commonly evaluated using the data in the matrix.

How do you find the confusion matrix in Matlab?

predictedY = resubPredict(Mdl); Create a confusion matrix chart from the true labels Y and the predicted labels predictedY . The confusion matrix displays the total number of observations in each cell. The rows of the confusion matrix correspond to the true class, and the columns correspond to the predicted class.

Is confusion matrix symmetric?

It has non-zero data in both the first “-1” row and the last “1” row. You might notice a symmetry in this confusion matrix. For example, there are 7 cases where TTB accurately predicted 1 where the CorrectGreater value was 1.

What is positive class in confusion matrix?

The confusion matrix is represented by a positive and a negative class. The positive class represents the not-normal class or behavior, so it is usually less represented than the other class. The negative class, on the other hand, represents normality or a normal behavior.

Can we use confusion matrix in regression?

Confusion matrix is one of the easiest and most intuitive metrics used for finding the accuracy of a classification model, where the output can be of two or more categories. This is the most popular method used to evaluate logistic regression.

What is confusion matrix for multiple classes?

Confusion Matrix is used to know the performance of a Machine learning classification. It is represented in a matrix form. Confusion Matrix gives a comparison between Actual and predicted values. ... Confusion Matrix has 4 terms to understand True Positive(TP),False Positive(FP),True Negative(TN) and False Negative(FN).

Is confusion matrix used only used for binary variables?

Confusion Matrix is not only used for binary variables but is also used for variables that can take more than two values such as High/Medium/Low, Cat/Lion/Tiger, etc. ... We can put Actual and Predicted Values in either rows or columns of Confusion Matrix.

What is a good F1 score?

An F1 score is considered perfect when it's 1 , while the model is a total failure when it's 0 . Remember: All models are wrong, but some are useful. That is, all models will generate some false negatives, some false positives, and possibly both.

Is confusion matrix helpful for balanced datasets?

Confusion matrices represent counts from predicted and actual values. ... Accuracy can be misleading if used with imbalanced datasets, and therefore there are other metrics based on confusion matrix which can be useful for evaluating performance.

How do you plot a confusion matrix in python?

1. # Get the predictions. ...
2. y_pred = pipeline.predict(X_test) ...
3. # Calculate the confusion matrix. ...
4. conf_matrix = confusion_matrix(y_true=y_test, y_pred=y_pred) ...
5. # Print the confusion matrix using Matplotlib. ...
6. fig, ax = plt.subplots(figsize=(7.5, 7.5)) ...
7. for i in range(conf_matrix.shape[0]):

What is recall confusion matrix?

First up: the confusion matrix, which is useful for quickly calculating precision and recall given the predicted labels from a model and the true labels. A confusion matrix for binary classification shows the four different outcomes: true positive, false positive, true negative, and false negative.

How do you create a confusion matrix in python?

How to create a confusion matrix in Python using scikit-learn

1. # Importing the dependancies.
2. from sklearn import metrics.
3. # Predicted values.
4. y_pred = ["a", "b", "c", "a", "b"]
5. # Actual values.
6. y_act = ["a", "b", "c", "c", "a"]
7. # Printing the confusion matrix.
8. # The columns will show the instances predicted for each label,
