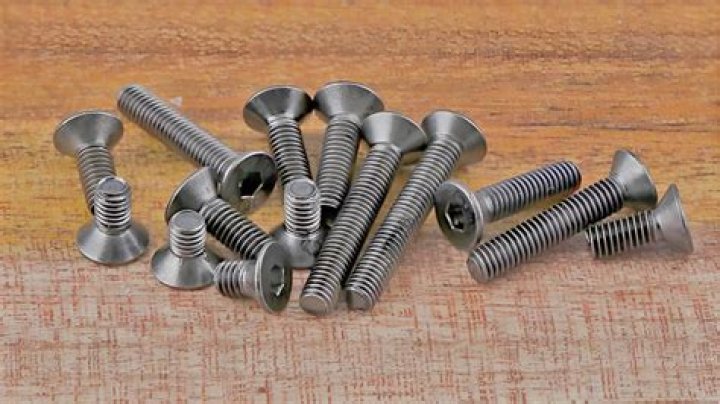

Also known as a flat-heat screw, a countersunk screw is a type of screw that's designed to rest flush with the object or surface in which it's inserted. ... Countersunk screws are simply characterized by their flat head, which allows them to sink into objects and materials.

What are countersunk heads used for?

A common use is to allow the head of a countersunk bolt, screw or rivet, when placed in the hole, to sit flush with or below the surface of the surrounding material (by comparison, a counterbore makes a flat-bottomed hole that might be used with a socket-head capscrew).

What is a countersink head?

A countersunk screw head is characterized by its ability to rest flush with the surface into which it's installed. The head essentially “sinks” into the workpiece's surface. If you inspect a countersunk screw head, you'll notice that it tapers towards the shank.

What are countersink screws?

Countersink your screws. Countersinking involves enlarging the rim of a pilot hole so that the head of the screw sits flush or just below the wood's surface. ... Countersinking your pilot hole prevents that chewed-up look from happening.

Are countersunk screws stronger?

Counter-sinking prevents murder.

Very often, the difference will not matter too much since both screw and wood will withstand 10 times as much as you are planning for anyway.

How to Countersink Wood Screws

45 related questions found

What is the point of a countersink?

Countersinks are mainly used for countersinking drill holes, countersinking screws and deburring. Countersinking widens the drill hole and facilitates subsequent tapping. When countersinking screws, space is created for the screw head so that it closes with the surface of the workpiece.

What are the strongest type of screws?

Structural screws (also called “construction” screws) are stronger than lags and make longer-lasting connections. You can just zip them in with any 18-volt drill (no pilot hole required).

What is countersink operation?

COUNTERSINKING, COUNTERBORING, AND SPOTFACING are three machining operations used to enlarge the opening of a hole. In countersinking, a conical, reamerlike tool is used to cut a tapered enlargement at the opening of a hole for receiving the head of a fastener, for receiving a center, or for deburring.

What angle are countersunk screws?

Countersinks have a countersink angle of 90° (and for US standard 82°) for countersinking screws, e.g. the countersink angle for rivets is 120°. For the flat countersink, the countersink angle is 180°.

What is countersink drill bit?

A countersink bit creates an area in the wood that matches the countersunk shape of the screw head. This shape allows the screw to contact the wood with an equal amount of force. This creates a strong joint between the screw and the wood.

Do I need a countersink bit?

For soft woods, like pine, a countersink may not be needed, as you can usually just drill a wee bit longer to get the head flush. But for hardwoods, countersinks are a must if you want the screw head flush, or to hide it completely below the surface by placing wood filler or a plug above it.

What are the different types of screw heads?

The two basic screw head types, countersunk and non-countersunk, include various unique designs.
...
The different screw drive types include:

• Slotted.
• Phillips.
• Phillips tamper-resistant.
• Combination.
• Hex external.
• Hex internal.
• Hex tamper-resistant.
• Square recess.

Why do we need to countersink the screw?

Countersinking is done to insure that flat head screws sit flush to the work piece. A countersink produces a conical hole matching the angle of the screw so that when the screw is fully engaged the head will sit flush or slightly below the surface. ... Countersinks have a greater range of applications and angles.

What are the types of screws?

Screw Types

• Wood Screws. Wood screws are used for basic wood construction and woodwork projects to attach wood to wood. ...
• Deck Screws. Deck screws are similar to wood screws with a few extra specificities. ...
• Drywall Screws. ...
• Masonry Screws. ...
• Sheet Metal Screws. ...
• Lag Bolts. ...
• Hex Bolts.

What means countersunk?

verb (used with object), coun·ter·sank, coun·ter·sunk, coun·ter·sink·ing. ... to cause (the head of a screw, bolt, etc.) to sink into a prepared depression so as to be flush with or below the surface. noun. a tool for countersinking a hole. a countersunk hole.

What is a double countersunk screw?

What is a double countersunk screw head? Improved design on the countersunk head to give additional head strength and assist countersinking. COUNTERSUNK RIBBED HEAD. Small ribs on the countersink to assist completion of countersinking.

How do you measure countersink depth?

QUICKLY MEASURE COUNTERSINK DIAMETERS

Simply press the spring loaded, exact angle Gaging Plunger into the countersink and read the dial directly in . 002" or 05mm diameter increments on the dial face or optional digital indicator. The COUNTERSINK GAGE is a direct reading gage.

What is the difference between a countersink and a counterbore?

The key difference between countersink and counterbore screws are the size and shape of the holes, counterbore holes are wider and more square to allow for the addition of washers. ... Countersinking creates a conical hole matching the angled shape on the underside of a flat-head screw.

How do I know what size countersink to get?

You will want to choose a countersink that is larger than the bolt size of the hole. Countersink diameter = 1.5 x Bolt Size Hole Diameter. Example: 1/4″-20 Bolt – Multiple the diameter (. 250) x 1.5 = 0.375.

What are the 3 types of screws?

3 Common Screw Types at a Glance – Machine, Sheet Metal, and Cap Screws.

What screw is best for wood?

— steel screws are the most useful for woodworking and interior DIY projects. They're strong, affordable and readily available in a vast range of sizes. But old-fashioned tapered steel wood screws can be a pain to use.

What is Panhead screw?

Pan head screws are a common head type of non-countersunk screw head used in wood screws, self-tapping screws, self-drilling screws, and machine screws. They have wide heads, a flat bearing surface, high vertical, chamfered, or curved sides, and a flat or slightly domed top surface with a recessed socket.
