So a technique called multistage compression with intercooling, where the gas is compressed in stages and cooled in between each stage to its initial temperature by passing it through a heat exchanger, is used. This heat exchanger is called an intercooler.

What is the effect of intercooling in Brayton cycle?

Intercooler increases the cycle efficiency due to lowering the inlet temperature to the compressor. A single intercooler improves the cycle efficiency by approximately 3 %. Once the first intercooler is used, the second and third intercooler provides much smaller efficiency increases.

What is intercooling in gas turbine?

The cooling of air between two stages of compression is known as intercooling. This reduces the work of compression and increases the specific output of the plant with a decrease in the thermal efficiency.

What is intercooling in thermodynamics?

The intercooler is a type of heat exchanger where it is used to cool the compressor gas amid the compression process. Reheating in thermodynamic process refers to an approach to build turbine work without variation in the compressor work from which the turbine is developed.

What is reheating in a Brayton cycle?

Work output from the turbine, operating between two specific pressure levels, could be increased by expanding the working fluid i.e. gas or air in stages and reheating the working fluid between two successive stages.

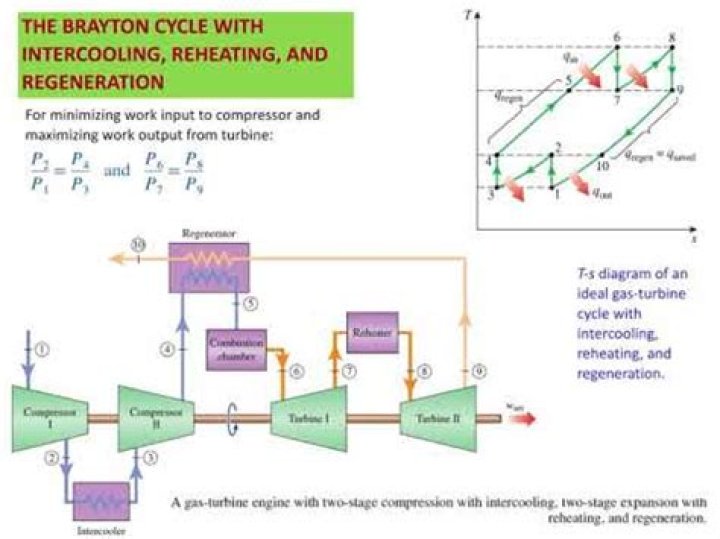

Intercooling in Brayton cycle- gas turbine

16 related questions found

What is the advantage of adding intercooling reheating and regeneration on Brayton cycle?

When intercooling and reheating are used, the working fluid leaves the turbine at a higher temperature and the compressor at a lower temperature. This makes regeneration more attractive.

Why reheater is used in gas turbine?

Reheating is applied in a gas turbine in such a way that it increases the turbine work without increasing the compressor work or melting the turbine materials. When a gas turbine plant has a high pressure and low pressure turbine a reheater can be applied successfully.

What is intercooling and why it is done?

Intercooling is a method used to compensate for heating caused by supercharging, a natural byproduct of the semi-adiabatic compression process. Increased air pressure can result in an excessively hot intake charge, significantly reducing the performance gains of supercharging due to decreased density.

What is perfect intercooling?

Answer: Intercooling : In perfect intercooling the temperature of air after passing out of intercooler is same as that of the temperature of air before compression of LP cylinder.

Why is intercooling necessary in multistage compression?

In multistage compressors, with each compression cycle, the pressure increases, which leads to an increase in temperature. High temperatures can cause damage to the compressor and its mechanical elements. Thus, it is essential to reduce the air temperature.

What is intercooling in gas turbine Mcq?

It is the stage of multi-compression in a gas turbine. After the compression of gas in the first compressor, its pressure and temperature are increase this gas is passed through the intercooler where its temperature decrease. The intercooling process is done by passing an extra amount of water or air.

What is the purpose of intercooling in the compressor?

Functions of Intercoolers

The air compressor intercooler's main function is to cool air before it enters the next stage of compression. The higher density of cool air makes it easier to compress than hot air. Ideally, the air should be as close to the ambient air temperature as possible.

What is the effect of intercooling and regeneration in gas turbine plant?

Gas turbine performance modelling, analysis and optimisation

The intercooled and reheat cycles can each include regeneration to recover some of the exhaust heat to improve the thermal efficiency of these respective cycles, and indeed there will be significant increase in the thermal efficiency of these cycles.

What is the difference between a Rankine Cycle & a Brayton cycle?

Explanation: The difference between a Rankine cycle & a Brayton cycle is that the working fluid in a Brayton cycle doesn't undergo phase change while it does in Rankine cycle. ... Explanation: For the production of power, the working fluid does some work on the blades of the turbine, thereby producing Power.

Why does multistage compression with intercooling decrease the compressor power?

By multi staging, the pressure ratio of each stage is lowered. Thus, the air leakage past the piston in the cylinder is also reduced. The low-pressure ratio in a cylinder improves volumetric efficiency.

When water intercooling is used in multistage compression it MCQS?

The water intercooling reduces the work to be done in low pressure compression. Explanation: The water intercooling reduces the work to be done in high pressure compression. It also reduces the specific volume of refrigerant which requires a compressor of small size. 4.

What does complete inter cooling mean?

Extraction of heat from a compressed gas between two stages of compression in order to improve the efficiency of compression.

What are the advantages of multi stage compression?

Benefits of Multi-stage Compression

• Improved efficiency. Two-stage compressors perform less work to compress air to a given pressure, which means your operating costs are lower.
• Better reliability. ...
• Less moisture buildup. ...
• Smaller footprint. ...
• Few maintenance requirements.

What is an FMIC?

A front mount intercooler refers to having a intercooler that is mounted in front of the car behind the front bumper. ... Intercoolers can be located in the front side air dams, on top of the motors like on Subaru's, or any place that receives airflow, if they are air to air intercoolers.

Do intercooling in multistage compressors is done?

Inter-cooling in multistage compressors is done.

What does a diesel intercooler do?

An intercooler is a special piece, usually placed on Turbocharged or Supercharged engines. It's purpose is to round up the air compressed by the turbo and supercharger, and then strategically cool it. ... Power is absolutely key when it comes to having an optimally strong engine to get you from point A to point B.

How does a reheater work?

Reheat is the addition of heat to previously cooled air. Reheat is used sometimes for humidity control, and sometimes for occupant comfort. ... Then the reheat coil activates and the incoming cool air is reheated to maintain the setpoint.

What is the location of reheater in gas turbine?

The superheaters and reheaters (refer to Fig. 4.4 for typical locations) are tube bundles located in the flue gas stream that increase the temperature of the saturated steam, which is produced in the furnace waterwalls.

What are the two benefits of adding a reheater to a Rankine Cycle?

Advantages: The advantages of using a reheat cycle are higher thermal efficiency, reduced feed water pump power, smaller condenser, smaller boiler, long life of the turbine and less handling of the fuel and firing requirement.

What is regeneration in a Brayton cycle?

• Regeneration, a process. during which heat is. transferred to a thermal energy storage device (called a regenerator) during one part of the cycle and is transferred back to the working fluid during another part of the cycle.
