The sigma comparator is a mechanical comparator which is used to compare the roughness or flatness of a workpiece with a standard or an another workpiece.

What is the principle of Sigma comparator?

Working Principle of Sigma Comparator:

The plunger is fitted through the slit diaphram to give a frictionless surface. When the plunger is pushed upward due to the uneven element it displaced the knife-edge either upward or downward. The knife-edge is fitted with the moving block using a Saphire bearing block.

What is Sigma comparator metrology?

Comparator is a device that is used to measure the roughness of the surface. It is a precision measuring instrument in the metrological field. Sigma comparator was developed by a company named Sigma Instrument Company, USA. It is mechanical comparator in which magnification ranges from 300 to 5000.

What is comparator and its types?

Comparators are classified into various kinds, such as electronic, electrical, mechanical, optical, sigma, digital and pneumatic comparators, these are used in various applications. Comparators play an essential role in designing electrical and electronic projects.

Which hinge used in Sigma comparator?

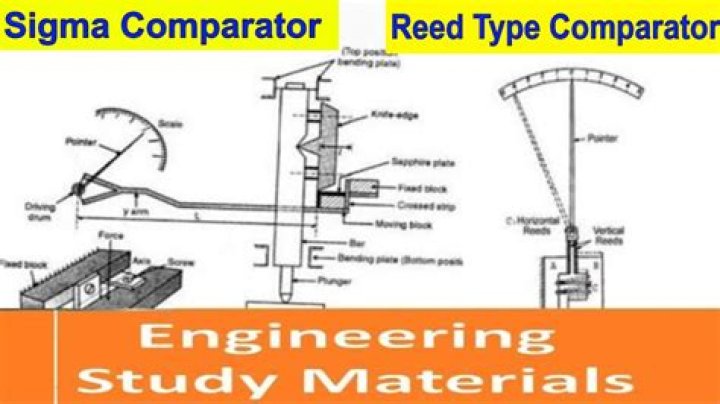

Construction of sigma comparator:

The Plunger is mounted on the slit diaphragms to give a friction less linear movement. the knife edge is fixed on it and bears upon the face of the moving member of a cross strip hinge.

Sigma Comparator working animation.

15 related questions found

What is Solex air gauge?

Solex Air Gauges Ltd. is one of the biggest and most popular pneumatic comparators industry in the USA. ... Solex Pneumatic comparator is used for the inspection of both internal diameters. With some additional attachments, this can also be used for external measurements.

What is magnification range of Sigma comparator?

Magnification Range:

The magnifications achieved by Sigma Comparators are in the range of 1000 to 2000. Means a plunger movement of 0.002 mm can be magnify up to deflection of pointer of 2mm.

What are comparators used for?

A comparator circuit compares two voltages and outputs either a 1 (the voltage at the plus side; VDD in the illustration) or a 0 (the voltage at the negative side) to indicate which is larger. Comparators are often used, for example, to check whether an input has reached some predetermined value.

Is dial gauge a comparator?

The dial indicator or the dial gauge is one of the simplest and the most widely used Mechanical comparator. Electronic gauges are more accurate and reliable than mechanical, which has made them the preferred choice in many applications.

What is the working principle of comparators?

Principle of comparator

The general principle of the comparator is to indicate the difference in size between the standard and work being measured by means of some pointer on the scale with sufficient magnification.

What is the principle of the Johansson Mikrokator?

What is the principle of 'The Johansson Mikrokator'? Explanation: Johansson Mikrokator is a mechanical comparator used to obtain mechanical magnification. Principle of Johansson Mikrokator is 'spinning of a button on a loop string'. Magnification of this comparator is of the order of 5000.

Is Sigma comparator a mechanical comparator?

Sigma comparator is a mechanical comparator introduced by a USA instruments manufacturing company. They are mainly used to measure the roughness of the surface by calculating the dimensional difference between the measured value and the standard value of the surface material.

What is a dial test indicator?

A dial test indicator, also known as a lever arm test indicator or finger indicator, has a smaller measuring range than a standard dial indicator. A test indicator measures the deflection of the arm, the probe does not retract but swings in an arc around its hinge point.

What is mechanical optical comparator?

Mechanical-Optical Comparator • Mechanical optical comparator consists of plunger which is attached with lever and a mirror on which the light strikes from the source. ... They have a less number of mechanical moving parts, hence less friction and inertia effect, and gives higher accuracy 2.

What is a pneumatic comparator?

A pneumatic comparator is a precision device operated using a pneumatic system or compressed air. Like other mechanical, optical, and electrical comparators, pneumatic comparators are also used to analyze the dimensional difference between the workpiece to be measured and the standard workpiece.

Which type of comparator changes its magnification?

Sigma comparator changes its magnification - Metrology & Quality Control. Q.

What is error metrology?

Measurement Error (also called Observational Error) is the difference between a measured quantity and its true value. It includes random error (naturally occurring errors that are to be expected with any experiment) and systematic error (caused by a mis-calibrated instrument that affects all measurements).

What is meant by metrology?

Metrology is “the science of measurement, embracing both experimental and theoretical determinations at any level of uncertainty in any field of science and technology,” as defined by the International Bureau of Weights and Measures (BIPM, 2004).

What is comparators in metrology?

In Metrology, The comparator is a Precision Instrument, which is used to compare the dimensions of the given component with the actual working standard.

What are electronic comparators?

In electronics, a comparator is a device that compares two voltages or currents and outputs a digital signal indicating which is larger. It has two analog input terminals and and one binary digital output . The output is ideally.

How many types of digital comparators are?

There are two main types of digital comparators available: Identity comparator and Magnitude comparator.

What are comparators in Java?

Java Comparator interface is used to order the objects of a user-defined class. This interface is found in java. util package and contains 2 methods compare(Object obj1,Object obj2) and equals(Object element).

What are gauges in metrology?

Plain Gauge is defined as the dimension measuring or inspective tools, without a scale to measure any manufacturing part of tools. In order to check shafts and the holes, Plain Gauge is used. Plain Gauge is classified into four different types.

Are the two types of comparator?

Based on the method of magnification, the comparators are classified as follows: Mechanical Comparator. Mechanical-Optical Comparator.

What is dial indicator explain it briefly?

The Dial indicator is a mechanical mean, having gears and pinions or levers for magnification system. They can responses to linear measurements even when they are too small. ... When this Dial Indicator is used in any measuring equipment for comparison purpose then these equipment are called Dial Gauges.
