For FCC and HCP systems, the coordination number is 12. For BCC it's 8.

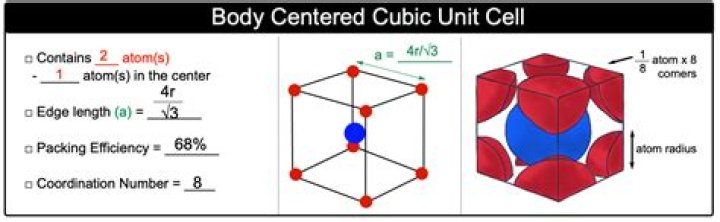

What is the coordination number of body-Centred atom?

The unit cell of the body-centred cube has one atom at each of the eight corners and one atom at the centre of the body. Thus, the atom at the centre remains in contact with 8 corner atoms. Hence, the coordination number of bcc is 8.

What is the coordination number for body centered cubic crystal system Mcq?

8 is coordination number for BCC crystal structure.

What is the coordination number of a simple cubic SC unit cell?

The simple cubic has a coordination number of 6 and contains 1 atom per unit cell.

What is the coordination number of a simple cubic structure Mcq?

The coordination number for the simple cubic structure is 6, whereas it is 8 and 12 for BCC and FCC respectively.

Coordination number of Simple cubic, FCC, BCC and hcp lattice

44 related questions found

What is the coordination number in a cubic close packed structure?

For a cubic close packed structure, each atom is touching 12 other atoms. Therefore, the coordination number of a CCP structure is 12.

What are the coordination numbers of atoms in a cubic packed structure and in a body-Centred cubic structure?

The coordination number of atoms in a cubic close-packed structure is twelve. ii. The coordination number of atoms in a body-centred cubic structure is eight.

What is coordination number Write the coordination number of HCP and CCP?

A CCP arrangement has a total of 4 spheres per unit cell and an HCP arrangement has 8 spheres per unit cell. However, both configurations have a coordination number of 12.

How many atoms face centered cubic?

Face Centered Cubic

This unit cell uses 14 atoms, eight of which are corner atoms (forming the cube) with the other six in the center of each of the faces.

How do you find the coordination number?

Here are the steps for identifying the coordination number of a coordination compound.

1. Identify the central atom in the chemical formula. ...
2. Locate the atom, molecule, or ion nearest the central metal atom. ...
3. Add the number of atoms of the nearest atom/molecule/ions. ...
4. Find the total number of nearest atoms.

What is the coordination number of cubic close packing in three dimension?

This crystal structure is called the structure of cubic close-packed (ccp) or face-centered cubic (fcc). In each of them, since each sphere is in contact with twelve spheres, the coordination number is 12.

Why is the coordination number of FCC 12?

In an fcc lattice the face centre atoms are the nearest atoms and one corner atom is surrounded by 4 faces in the x-plane, 4 faces in the y-plane and 4 faces in the z-plane. So, every corner atom is surrounded by (4 × 3) = 12 face centre atoms. ... Hence, the coordination number of an fcc lattice is 12.

What is the coordination number in square close packing?

If we see in a square closed packed structure a molecule is in contact with four of its neighbours. Hence, the coordination number in a square close packed structure in two dimensions will be four.

What is meant by the coordination number?

coordination number, also called Ligancy, the number of atoms, ions, or molecules that a central atom or ion holds as its nearest neighbours in a complex or coordination compound or in a crystal.

What is the coordination number in a square close packing b hexagonal packing?

Coordination numbers in a square close packed structure and hexagonal close packed structure respectively, are. 2,6.

What is the coordination number of the particle during square close packing of particles in two dimension?

What is the coordination number in a square close packed structures in two dimensions? Thus,coordination number is 4 as each atom is sorrounded by four other atoms.

What is the coordination number of diamond?

In diamond, coordination number of carbon atoms is 4 and its unit cell has 8 carbon atoms.

What is the coordination number of Fe in Fe EDTA?

The coordination number of Fe in Fe(EDTA)‐L is seven in coordinate complex, where L can be a DNA constituent like uracil, uridine, thymine, thymidine, and inosine.

What is coordination number in solid state?

Coordination number, also called Ligancy, the number of atoms, ions, or molecules that a central atom or ion holds as its nearest neighbours in a complex or coordination compound or in a crystal. ... All crystal lattices are built of repeating unit cells.

Which of the following has coordination number 6?

For molecules and polyatomic ions the coordination number of an atom is determined by simply counting the other atoms to which it is bonded (by either single or multiple bonds). For example, [Cr(NH₃)₂Cl₂Br₂]⁻ has Cr³⁺ as its central cation, which has a coordination number of 6 and is described as hexacoordinate.

What is the coordination number of each sphere in cubic close packing of spheres in three dimensions?

This crystal structure is called cubic close-packed (ccp) or face-centered cubic (fcc) structure. In both of them, the coordination number is 12 as each sphere is in contact with twelve spheres.

What is cubic close packing?

Cubic Close Packing. Face Centered Cubic Cell. Closest packed means that the atoms are packed together as closely as possible. The FCC unit cell is actually made of four cubic close packed layers (click to show the unit cell with layers). The first layer of atoms pack together as close as possible.

What is the coordination number of CR in K3 Cr Ox 3?

There are 3 oxalate ligands, so it will occupy = (2 × 3) = 6 positions around the central metal atom. Hence, the coordination number of chromium in given complex is 6.

What is the coordination number of Fe in k3fe C2O4 3?

What is the coordination number of the Fe atom is K3[Fe(C2O4)3]? Ans. The coordination number is 6. There are three bidentate ligands attached to the central metal, 3 x 2 = 6.

What is the coordination number of PT in PT en 2 2+?

- Here 2 chloride ions give 2 negative charges and two ethylene diamine contains charge equal to one in this we calculate the coordination number. - Hence we can say that coordinate number of Pt in ${{[Pt{{(en)}_{2}}C{{l}_{2}}]}^{2+}}$ is 6. So, the correct answer is “Option D”.
