Ohm's law is not applicable for unilateral electrical elements like diodes and transistors as they allow the current to flow through in one direction only.

What does Ohms law not apply to?

Ohm's law is not obeyed by capacitors and inductors (which are said to be reactive). Looking at resistance and reactance together is known as impedance.

Under what conditions is Ohm's law not obeyed?

A metallic conductor with changing temperature does not obey Ohm's law. The law does not hold for carbon, electrolytic substances, semiconductors etc.

In which of the following materials Ohm's law is not applicable?

◆ Non-ohmic conductors -

Conductors which don't obey Ohm's law are called non-ohmic conductors. They have non-linear relationship between current & voltage. They have variable resistance. For example, semiconductors.

What is the limitation of Ohm's law?

Limitations of Ohm's Law of Current Electricity

The law is not applicable to unilateral networks. Unilateral networks allow the current to flow in one direction. Such types of network consist of elements like a diode, transistor, etc. Ohm's law is also not applicable to non – linear elements.

Why Ohm's Law is NOT V=IR - there's more to it! Resistance must be constant - Parth G Physics

21 related questions found

Why is Ohm's law not applicable for semiconductors?

The semiconductor does not obey Ohm's law because it has opposite properties than a conductor and it has non-linear property.

Why Ohms law is not applicable for many electronic devices?

Non-Ohmic conductor/ components are those whose resistance changes with temperature. They are also known as Non-Linear Elements. Ohm's Law is not applicable to all those electrical/ electronic devices which contain any of the following components in their circuitry: Tungsten Filament (in Incandescent Bulbs)

What are the application and limitations of Ohms law?

Limitations of ohms law

The law of Ohm does not apply to unilateral networks. The current can only flow in one direction in unilateral networks. Diodes, transistors, and other electronic components are used in these sorts of networks. Non-linear components are also exempt from Ohm's law.

What are the limitations of Ohms law class 10?

Examples of Limitations of Ohm's Law: 1. Diode is an example which helps in understanding the limitations of Ohm's law . When the voltage versus current graph is plotted for a diode it is observed that the relation between voltage and current is not linear.

Under what conditions is Ohms law applicable?

Ohm's Law is applicable only if all the physical conditions for example temperature, material or dimensions of the wire remain constant.

Where is Ohms law applicable?

Ohm's law is one of the basic equations used in the analysis of electrical circuits. It applies to both metal conductors and circuit components (resistors) specifically made for this behaviour. Both are ubiquitous in electrical engineering.

What are the limitations of Ohms law Brainly?

The limitations of Ohm's law is that it only applies for a certain constant temperature i.e the resistance changes with temperature. Also when current is passed through a circuit, the temperature increases (due to resistance to of the material causing heat).

Is ohms law applicable to non linear devices?

Ohm's law is also not applicable to non – linear elements. Non-linear elements are those which do not have current exactly proportional to the applied voltage that means the resistance value of those elements changes for different values of voltage and current.

Is Ohm's law universally applicable?

No, Ohm's law is not universally applicable for all conducting elements. Vacuum diode semi-conductor is a non-ohmic conductor.

Is Ohm's law is not applicable to DC circuit?

ohms law is valid for both ac and dc .

Is Ohm's law applicable to all conductors?

Not all conductors obey Ohm's law. In fact, most conductors of electricity are non-ohmic conductors. Ohm's law is only true for resistors whose resistance does not depend on the applied voltage, which are called ohmic devices. ...

Does temperature affect Ohms law?

Ohm's law is valid only when the temperature and other physical parameters do not affect the resistance of the metals conductors. Another example is incandescent bulb. The tungsten filament which is present in the bulb is heated up when the voltage increases, the resistance of the wire changes.

Can we use Ohms law for AC circuits?

Simple answer: Yes, Ohm's Law still applies in AC circuits. The difference is that AC circuits involve complex sources and impedances which vary with either time or frequency, so your V,I,& R aren't always real numbers, but complex expressions.

What is resistance in Ohms law?

Resistance is a measure of the opposition to current flow in an electrical circuit. ... Ohms are named after Georg Simon Ohm (1784-1854), a German physicist who studied the relationship between voltage, current and resistance. He is credited for formulating Ohm's Law. All materials resist current flow to some degree.

What are the non ohmic conductors?

The non-ohmic conductors are those which do not follow ohm's law. Not following ohm's law means that their resistance is variable, it varies according to the change in current, voltage of temperature. ... The examples of non-ohmic conductors are diodes, transistors, thyristors, electrolyte, semiconductors, etc.

Is EMF really a force?

The work done on a unit of electric charge, or the energy thereby gained per unit electric charge, is the electromotive force. Electromotive force is the characteristic of any energy source capable of driving electric charge around a circuit. ... Despite its name, electromotive force is not actually a force.

What is Ohm's law for class 10th?

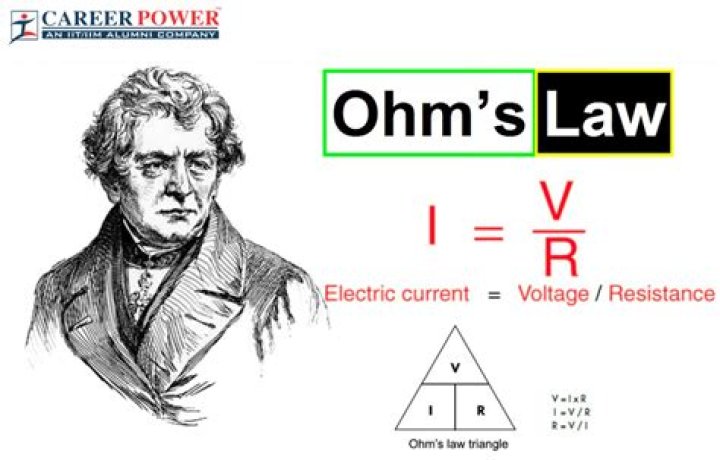

Ohm's Law states that the current flowing through a conductor is directly proportional to the potential difference applied across its ends, provided the temperature and other physical conditions remain unchanged. ... Ohm's Law shows the relationship between the voltage (V), current (I) and resistance (R).

Is Ohms law applicable for both AC and DC?

Ohm's law states that the current flowing through a circuit is proportional to the voltage applied across the circuit. ∴ We conclude that Ohms law applies to both DC and AC circuits provided that mutual inductance of the circuit is taken into account.

Under what conditions is Ohms law valid and why?

The condition for the validity of the Ohm's law is that Resistance must be uniform.

Why Ohm's Law is not a universal law?

✴ It is not an universal or fundamental law because non-ohmic conductors like semiconductors does not obeys the ohms law. ... ✴Similar as newton gravitational law, ohm's law not a universal law as it is depends on the physical factor of the conductor like pressure, temperature.
