This condition is most often found when the temperature above the frontal inversion is warmer than 0°C and the temperature below is colder than 0°C. Icing above the warm frontal surface, in regions where the cloud temperatures are colder than 0°C, is usually confined to a layer less than 3,000 feet thick.

When can airframe icing occur?

Ice can form on an aircraft when the SAT is above 0°C if the aircraft surface is below freezing. This situation can occur when the aircraft descends from subfreezing temperatures. It can also occur on areas where the local temperature is reduced to below freezing due to local flow acceleration.

Under which conditions will ice form on the airframe?

Ice will form on an aircraft if liquid water hits a part of the airframe which has a temperature below freezing. At very low temperatures, ice tends to form close to leading edges and is generally easy to see. At temperatures just below zero, the ice spreads back, is less visible, and affects more of the airframe.

In what phase of flight do most icing accidents occur?

Most icing accidents occur in the approach and landing phases of flight. When carrying ice do not lower the flaps. tail with ice accretion to stall. Remember the stall speed is increased when carrying a load of ice, and the stall margin is reduced when you slow to land.

What conditions are required for structural icing to occur?

STRUCTURAL ICING

Two conditions are necessary for structural idng in flight: (1) the aircraft must be flying through visible water such as rain or cloud droplets, and (2) the temperature at the point where the mois- ture strikes the aircraft must be 0° C or colder.

Icing (Private Pilot Lesson 5i)

24 related questions found

What is airframe icing?

Definition. In-Flight Airframe Icing occurs when supercooled water freezes on impact with any part of the external structure of an aircraft during flight.

How are icing conditions determined?

They exist when temperature is in freezing range (+2°C to -20°C) and there is visible moisture or precipitation. In order to find out where there is an ice zone and where it is safe, pilots need to focus on obtaining ceiling, cloud tops, freezing level, PIREPs and any frontal activity over the entire route.

How do you stop airplane icing?

To protect an aircraft against icing in-flight, various forms of anti-icing or deicing are used: A common approach is to route engine "bleed air" into ducting along the leading edges of wings and tailplanes. The air heats the leading edge of the surface and this melts or evaporates ice on contact.

How do you get out of icing conditions?

Basically, this rule of thumb states that if you encounter icing conditions while en route, a simple climb or descent of 3,000 feet will usually allow you to exit those icing conditions.

How can you determine if your aircraft is authorized to fly into known icing conditions?

Aircraft approved for Flight Into Known Icing undergo rigorous testing to determine an aircraft's tolerance to ice accumulation on unprotected surfaces including tunnel testing, dry-air testing, testing behind an icing tanker, and flight in natural icing conditions.

Can airframe icing occur in clear air?

It may also interfere with radio by coating the antenna with ice. It generally forms in clear air when a cold aircraft enters warmer and damper air during a steep descent.

How do planes keep ice off wings?

Typically aircraft systems prevent ice buildup in one of two ways. On most jet aircraft, hot air from the engines is routed through piping in the wings, tail and engine openings to heat their surfaces and prevent icing.

Why is Frost hazardous to flight?

Frost disrupts the smooth flow of wind over the wing causing reduced lift. It increases the weight of the aircraft and changes the weight and balance. Frost changes the basic aerodynamics of the airfoil, thereby causing reduced lift.

What temp does ice stop forming?

Water, like all types of matter, freezes at a specific temperature. The freezing point for water is 0 degrees Celsius (32 degrees Fahrenheit).

Can you take off with frost on the wings?

(a) No pilot may take off an airplane that has frost, ice, or snow adhering to any propeller, windshield, stabilizing or control surface; to a powerplant installation; or to an airspeed, altimeter, rate of climb, or flight attitude instrument system or wing, except that takeoffs may be made with frost under the wing in ...

What temperature does aircraft icing occur?

Ice can form on aircraft surfaces at 0 degrees Celsius (32 degrees Fahrenheit) or colder when liquid water is present.

What action would you take to deal with icing conditions if it is present at the scene?

What to do if you encounter icing conditions: You should immediately seek to exit the icing conditions.

Is freezing fog severe icing?

It's something to keep firmly in mind when operating in fog at low temperatures. There is little data on aircraft icing characteristcs in freezing fog. However, the icing environment is known to be severe.

Can you get icing without visible moisture?

Simply put, you can expect icing in any clouds, precipitation, or visible moisture (defined in terms of surface visibility as one statute mile or less) where freezing temperatures coexist. ... It's tempting to believe that the rain will persist, but you may be flying in a temperature inversion.

Can planes fly with ice on wings?

A: Airliners are certified for flight in known icing. Pilots are provided weather information to inform them of the icing conditions, but light or moderate icing does not require a routing change. Severe icing is avoided and flights may have to divert in such conditions.

Where is airplane icing most difficult to identify?

Icing can be difficult to identify on the flat upper wing surface. If you detect icing accumulation in flight, especially if the aircraft is not equipped with a deicing system, you should leave the area of precipitation, or fly to an altitude where the temperature is above freezing.

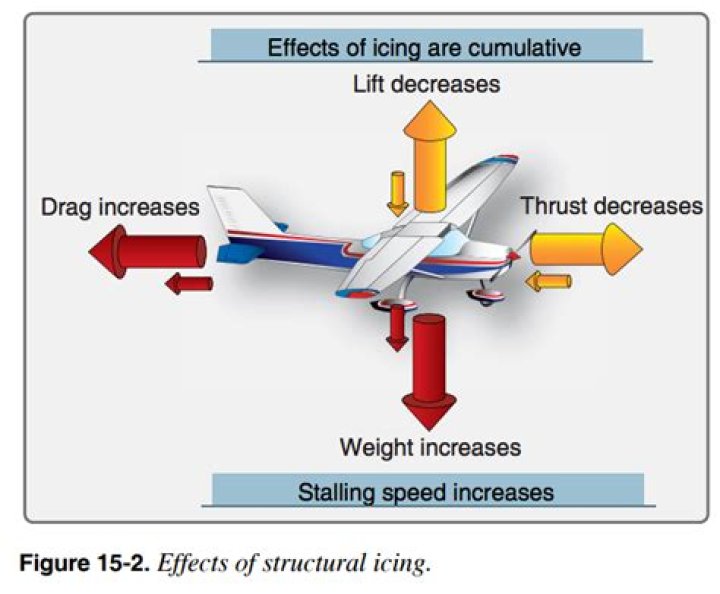

What will happen if you have ice build up in your aircraft?

Ice can distort the flow of air over the wing, diminish- ing the wing's maximum lift, reducing the angle of attack for maximum lift, adversely affecting airplane handling qualities, and significantly increasing drag.

What constitutes severe icing?

Severe icing may occur at any ice accumulation rate when the icing rate or ice accumulations exceed the tolerance of the aircraft. Icing certification implies an increased tolerance to icing intensities up through heavy.

Is rain visible moisture?

Visible Moisture means an atmospheric environment containing water in any form that can be seen in natural or artificial light; for example, clouds, fog, rain, sleet, hail, or snow.

Which weather products you can use to determine potential icing conditions?

5 Weather Products That Help You Determine Icing Conditions

• 1) Freezing Level Charts. A starting point for determining icing conditions is to take a look at the freezing level charts. ...
• 2) Forecast Icing Potential (FIP) ...
• 3) Current Icing AIRMETs/SIGMETs. ...
• 4) Current Icing PIREPs. ...
• 5) Winds and Temperatures Aloft.
