Fluidized beds are used for several purposes, such as fluidized bed reactors (types of chemical reactors), solids separation, fluid catalytic cracking, fluidized bed combustion, heat or mass transfer or interface modification, such as applying a coating onto solid items.

Where are fluidized beds used?

Fluidized beds have been used in technological processes such as: cracking and reforming of hydrocarbons (oil), carbonization and gasification of coal, ore roasting, Fischer-Tropsch synthesis, polyethylene manufacturing, limestone calcining, aluminum anhydride production, granulation, vinil-chloride production, ...

What are some advantages and application examples of fluidized beds?

One of the several applications fluidized beds are utilized for is chemical reactors. Some advantages of using a fluidized bed include uniform particle mixing and temperature gradients. Unlike pack beds that have poor mixing, fluidized normally allows for a more uniform product compared to other reactor designs.

What is the purpose of fluidization?

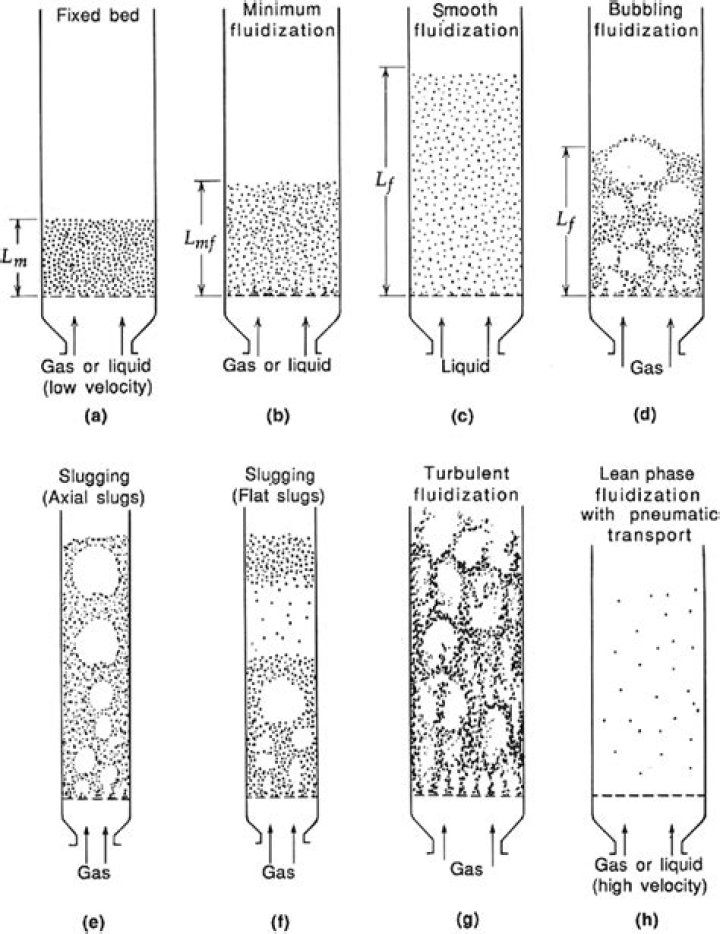

Fluidization is defined as a method to keep solid particles floating in an upward direction (Figure 5) in a flow of gas or liquid. In freezing, fluidization occurs when particles of a similar shape and size are subjected to an upward stream of low-temperature air.

What are 3 benefits of using fluidized sand as a method of separation?

Despite these challenges, fluidized beds offer three distinct advantages over other process technologies: superior heat transfer, the ability to easily move solids like a fluid, and the ability to process materials with a wide particle size distribution.

Fluidized bed

27 related questions found

What do you mean by fluidized bed?

: a bed of small solid particles (as in a coal burning furnace) suspended and kept in motion by an upward flow of a fluid (such as a gas) — called also fluid bed.

How does a fluidized sand bed work?

Water is injected at the bottom of a sand bed. The water flows against gravity, through the sand bed, lifting the sand as it travels. The packed or “static” bed becomes a viscous and fluid substance, with a clearly defined volume within the flowing water column it occupies.

What is the difference between fixed bed and fluidized bed?

Fluidized-bed reactors offer a much higher efficiency in heat exchange, compared to fixed beds, and better temperature control, due to the turbulent gas flow and rapid circulation. ... This translates to high cost reduction, due to smaller required heat exchange area, lower gas compression costs and easier construction.

What are advantages of a fluidized bed?

The advantages of fluidized bed drying include low investment and maintenance costs, large-scale continuous production, lower air temperatures than spray drying and a relatively short drying time compared to freeze drying and vacuum drying (Bayrock and Ingledew, 1997).

Is fluidized bed a CSTR?

High degree of internal mixing is the main disadvantage, causing fluid bed reactors to approach a completely mixed reactor (CSTR) rather than a plug-flow. ... Consequently, the performances of a fluidised bed reactor may be much worse than a CSTR of the same volume.

Is fluidized bed reactor continuous?

Fluidized bed reactors not only allow for continuous operation but also high heat and mass transfer coefficients can be achieved [27]. The resulting improved heat and mass transfer allows for higher charging/discharging power of such storage systems.

What are the types of fluidized bed?

There are two main types of fluidized bed gasification systems—bubbling fluidized bed and CFB. Depending on the scale of operation, the cyclone separators for capture and recycling of solid particles could be placed either internally or externally.

What is a fluidized bed heat exchanger?

A fluidized bed heat exchanger is provided in which air is passed through a bed of particulate material containing fuel. A steam-water natural circulation system is provided for heat exchange and the housing of the heat exchanger has a water-wall type construction.

What are the advantages of fluidized bed combustion explain PFBC with neat sketch?

This system: the following advantages: (a) High burning rates. (b) Improved desulphurization and low NO, emission. (c) Considerable reduction in cost. If a coal-fired fludized bed combustor is operated at elevated pressure, the products of combustion can be expanded through a gas turbine to produce electricity.

What type of reactor is fluidized bed?

Fluidized bed reactors are another class of multiphase catalytic reactors which have unique advantages in terms of heat and mass rates and mixing. In two- or three-phase fluidization systems, gas and liquid phases are used as carrier fluids, with internal or external separation of the solid catalyst for recycling.

What are packed bed reactors used for?

Packed bed reactors are very versatile and are used in many chemical processing applications such as absorption, distillation, stripping, separation processes, and catalytic reactions. Across the diverse applications in which they are used, the physical dimensions of the beds can vary greatly.

What is fluidized bed combustion boiler?

Fluidized bed combustion (FBC) is a combustion technology used to burn solid fuels. ... Limestone is used to precipitate out sulfate during combustion, which also allows more efficient heat transfer from the boiler to the apparatus used to capture the heat energy (usually water tubes).

Are packed bed reactor and fixed bed reactor same?

Packed bed reactors, also known as fixed bed reactors, are often used for catalytic processes. Pictured below is a fixed bed reactor used in a synthetic process. ... The experiment is designed to develop packed bed reactors for microgravity environments by studying fluid flow though porous media in microgravity.

What does a moving bed filter do?

The moving bed filter is one of the biofilters in which the primary objective is to control the un-ionised ammonia (NH3) concentration of the water, as this is very toxic to fish.

What is a sand bed?

a thick layer of sand, whether deposited naturally or artificially; specifically, a thick layer of sand into which molten metal is run in casting, or from a reducing furnace. ...

How does a fluidized bed incinerator work?

In the fluidized-bed incinerator, wastes are quickly and uniformly incinerated with utilizing thermal capacity of hot fluidizing sand. ... Wastes can be treated stably through agitating and shredding effect of fluidizing sand, and this can enable mixed firing of sludge at very high mixed combustion rates without premixing.

What is pressure drop in fluidized bed?

The pressure drops to the point where the upward force on the bed is balanced by the downward force due to the weight of the bed particles. Further increases in gas velocity fluidize the bed, the pressure drop rises slightly until slugging and entrainment occurs.

When would you use a plug flow reactor?

Plug flow reactors are used for some of the following applications:

1. Large-scale production.
2. Fast reactions.
3. Homogeneous or heterogeneous reactions.
4. Continuous production.
5. High-temperature reactions.

What is the most important factor to be considered for designing a fluidized bed reactor Mcq?

1. What is the most important factor to be considered for designing a fluidized bed reactor? Explanation: Because for other factors to workout, solids properties are initially considered. 2.
