Worm drives are used as the tuning mechanism for many musical instruments, including guitars, double basses, mandolins, bouzoukis, and many banjos (although most high-end banjos use planetary gears or friction pegs). A worm drive tuning device is called a machine head.

What is a worm and worm wheel used for?

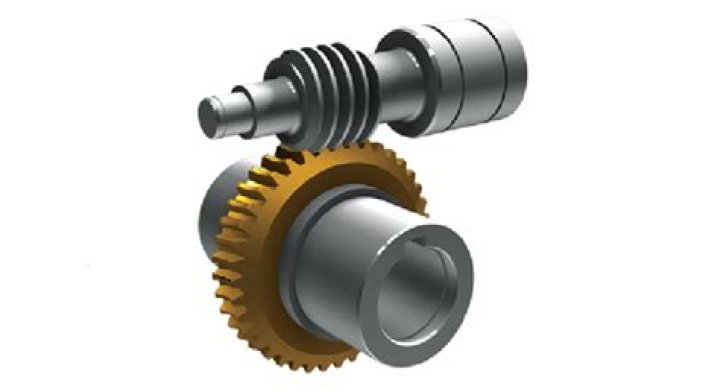

In order to transmit motion and power at various speeds and speed ratios, worms and worm gears work in sets, rotating on shafts at right angles to one another. The worm usually drives the worm gear. In worms and worm gear sets, both the worm and worm gear are of the same hand.

When should I use worm gears?

Worm gears are power-transmission components primarily used as high-ratio reductions to change the direction of shaft rotation and to decrease speed and increase torque between non-parallel rotating shafts. They are used on shafts with non-intersecting, perpendicular axes.

How do worm wheels work?

How Worm Gears Work. An electric motor or engine applies rotational power via to the worm. The worm rotates against the wheel, and the screw face pushes on the teeth of the wheel. The wheel is pushed against the load.

What are commonly used materials for worm and wheel?

MATERIALS for worm and worm gears are generally confined to steel for worms and bronze or cast iron for gears. When steel worms are run with bronze gears at high speeds, the worm is usually hardened with ground threads. There is often some confusion as to the self-locking ability of a worm and gear set.

Worm Gear (Worm Drive): What is it, How it works, why huge velocity ratio and mechanical advantage?

37 related questions found

Why is bronze used for gears?

The steel gears are usually heat treated in order to combine properly the toughness and tooth hardness. The phosphor bronze is widely used for worms drive in order to reduce wear of the worms which will be excessive with cast iron or steel. Worm gear sets are usually used to reduce speed and increase torque.

Is bronze used for gears?

Copper alloy (bronze) gears have unique properties that contribute to minimal wear in bronze to steel contact. Bronze gears are used in gear reducers and are mated against steel worm gears. ... Bronze to steel results in much lower friction forces than with steel to steel.

What is worm gear used for?

The worm and worm gear, which are illustrated in Figure 57.21, are used to transmit motion and power when a high-ratio speed reduction is required. They accommodate a wide range of speed ratios (60:1 and higher can be obtained from a single reduction and can go as high as 500:1).

What is law of gearing?

Law of gearing states that the common normal at the point of contact between a pair of teeth must always pass through the pitch point for all positions of mating gear. ... This is a must condition for the two gears to perform properly.

What are the advantages of worm gear drives?

Advantages of worm gear

• Worm gear drives operate silently and smoothly.
• They are self-locking.
• They occupy less space.
• They have good meshing effectiveness.
• They can be used for reducing speed and increasing torque.
• High velocity ratio of the order of 100 can be obtained in a single step.

What are the types of gear?

Read on to learn the different types of gear and the applications and industries that utilize them.

• Spur Gear. Spur gears transmit power through shafts that are parallel. ...
• Helical Gear. ...
• Double Helical Gear. ...
• Herringbone Gear. ...
• Bevel Gear. ...
• Worm Gear. ...
• Hypoid Gear.

Can a worm gear go both directions?

Yep, they are designed to work in both directions of revolution of the motor. However, normally, a helical worm gear-unit cannot be back-driven (that's why they are used for conveyors, so that the wont slip in reverse in case of a power failure).

Where are helical gears used?

Helical gears are often the default choice in applications that are suitable for spur gears but have non-parallel shafts. They are also used in applications that require high speeds or high loading. Regardless of the load or speed, they generally provide smoother, quieter operation than spur gears.

What are the applications of spur gear?

Spur Gears Applications

• Transmissions.
• Conveyor systems.
• Speed reducers.
• Engines and mechanical transportation systems.
• Gear pumps and motors.
• Machining tools.

What is velocity of sliding?

Definition. Sliding velocity is the relative velocity in a transverse plane of a common contact point between mating gear teeth. As shown in Fig. 1, it is the vectorial difference between the two rolling velocities that are tangential to the tooth profiles and perpendicular to the line of action.

What is zero backlash?

These zero backlash gear units from Harmonic Drive LLC consist of a zero-backlash gear integrated with a housing and precision output bearing. ... This also eliminates the play between the gear teeth and thus eliminates backlash. Of course, the type of gears used can also have a large impact on the amount of backlash.

What is Arc of contact?

: the portion of a circular surface that is in contact with another surface (as that between a belt and a pulley) specifically : the arc on a toothed gear between the point where the teeth first make contact with another gear wheel and the point where that contact ends.

Why is it called a worm gear?

The reason why the worm gear is called a worm gear is derived from bionics. ... Worm gear mechanisms are commonly used to transmit motion and power between two staggered shafts. The worm gear and the worm are equivalent to the gear and the rack in the middle plane, and the worm is similar in shape to the screw.

Which material is best for worm gear?

Typically, for worm gears, we recommend tin bronze (C91700) and aluminum bronze (C95400 and C95500) due to their relatively high strength, and superior fatigue, friction, and wear resistance.

Why is brass used for gears?

The copper base of brass alloys contributes to its ease of machining and its antimicrobial benefit. Gears typically produced from brass alloys are spur gears and gear racks that will be used in low-load environments such as instrument drive systems.

What is lead angle in worm gear?

Lead angle is the angle between the helix and a plane of rotation. It is the complement of the helix angle, and is used for convenience in worms and hobs. It is understood to be at the standard pitch diameter unless otherwise specified.

What metals are used for gears?

Gears can be made of all sorts of materials, including many types of steel, brass, bronze, cast iron, ductile iron, aluminum, powdered metals, and plastics. Steel is the most common material overall, although over the years, we've worked with all of the material types mentioned.

Why stainless steel is used for gears?

Stainless steel's resistance to rust and scarring is due to the infusion of chromium. The strength, durability and corrosion resistance make stainless steel a popular material for spur gears.

Which material is used in gear?

Gears are made of variety of materials depending on the requirement of the machine. They are made of plastic, steel, wood, cast iron, aluminum, brass, powdered metal, magnetic alloys and many others.
