The drip edge should be installed on top of the underlayment at all rakes, and below or on top of the underlayment at the eaves. At the eaves, when installing the drip edge on top the underlayment, a 4-inch wide layer of asphalt roof cement (complying with the ASTM D4586, Type I or Type II) is required.

Where do you put drip edge?

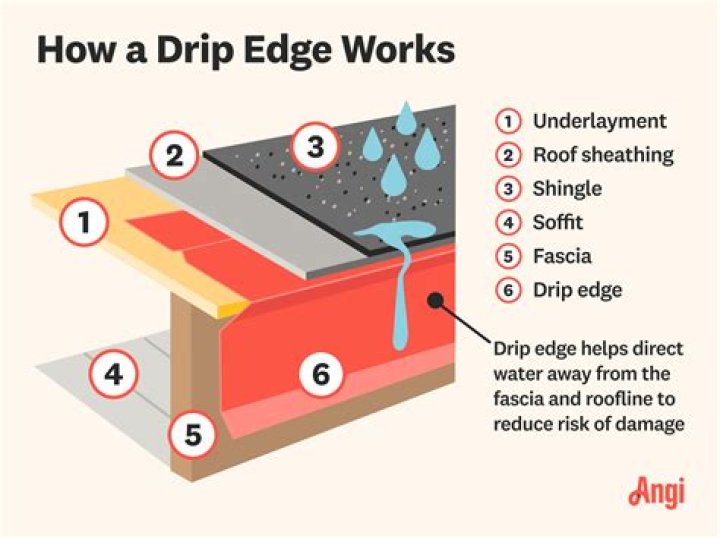

The correct placement of a roof drip edge is on top of the roof's exterior cover directly between the sheathing and the fascia board, which forms a drainage gap between the drip edge and the fascia board. As a result, the drainage improves water flow and protects the roof from potential water damage.

Does drip edge go over or under ice and water shield?

(The drip edge will be installed over the ice and water protector and other underlayments at roof rake edges.) You should install ice and water protector before other underlayments, including roof felt. Around roof features like dormers and chimneys, you should place ice and water protector below flashing.

Does drip edge go on eaves?

Does Drip Edge Go Over or Under Felt? According to most building codes and manufacturer recommendations, the drip edge should be installed beneath the underlayment along the eaves of the roof. But over the underlayment along the rake edges of the roof.

Does drip edge go on top of felt paper?

Installing roof drip edge flashing properly

The best way is to install the roof drip edge only along the eaves first, then place ice-and-water barrier (in the snowbelt) or felt paper (underlayment) over the drip edge. This lets any water that gets on the roof run down the underlayment and over the drip edge.

How To Install Drip Edge On A Roof

30 related questions found

Should drip edge be tight to fascia?

A vertical drip edge lip extends down roughly 1 5/8" and as Steve points out, should not be set tight against the fascia board or water may run behind the gutter and down the fascia, inviting leaks and rot.

Should I put ice and water shield on my entire roof?

You may apply an ice and water protector on your entire roof, but this can also be costly overall. Instead, install it first on critical areas of your roof before you consider covering the whole roof. Install your ice and water protector covering at least 3 feet from the edge of your roof.

Can you install drip edge after shingles?

Can Drip Edge Be Installed After Shingles? The most popular time to install a drip edge is when new shingles are installed. However, the drip edge can be installed at any time. The materials involved include: a ladder, a flat pry bar, a hammer, tin snips, eave stripping, and galvanized roofing nails.

Should gutters go behind drip edge?

It is recommended that gutters are placed under or 'behind' the drip edge of your roof. ... If gutters are installed below the drip edge, water can drip behind the gutter and cause damage to the wood supporting the gutter system.

How far should shingles overhang drip edge?

Shingles should not extend more than 3/4” (19 mm) past the drip edge. If shingles overhang the edge of the roof by more than 3/4” (19 mm), then they are not supported and may crack and break off.

Is a drip edge necessary on a roof?

Without a drip edge, water may end up beneath the shingles and may cause damage to various parts of the home. Though your home may not have originally had a drip edge installed, drip edges are now required by most building codes across North America to protect homes from damage.

What is the purpose of drip edge?

Drip edge is metal flashing installed at the edges of the roof to keep water away from your fascia and from getting underneath your roofing components. If your roof doesn't have drip edge, water gets behind your gutters and rots out both your fascia board and roof decking.

Can you change drip edge without removing shingles?

The drip edge is often replaced when new shingles are installed, but it can be replaced at any time. Asphalt roof shingles can become brittle in cold weather, so wait until a warm (but not hot) day to remove and replace eave stripping.

Does felt paper go over ice and water shield?

Roofing ice and water shield may look like traditional felt paper, but it's vastly different in performance. Traditional felt paper does a very good job at stopping most leaks where water gets under shingles, tiles, metal or slate.

Can ice and water shield be exposed to sunlight?

GCP's underlayments (GRACE ICE & WATER SHIELD®, GRACE ICE & WATER SHIELD® HT, GRACE ULTRA™, GRACE SELLECT™, GCP granular underlayment, Roof Detail Membrane™, TRI-FLEX® and TRI-FLEX® 15) are not meant to be left permanently exposed to the sun.

How do you get ice and water shield off roof?

Sometimes shingles come off the ice shield better when it is hot. In that case, let the area heat up a bit and then tear that area off, and then the shingles will separate from the ice shield. Sometimes shingles just won't come up at all.

Do you install drip edge with metal roofing?

A drip edge is not needed for metal roofing. ... If the metal roof is hanging over an inch, the water will be directed away from the fascia anyway if at a slant. However, it is highly recommended to install a drip edge to save from water damage later on.

Do you butt or overlap drip edge?

The best practice is to always install the drip edge so that it is inside the gutter. The whole purpose is to direct the water into the gutters. ... For proper water drainage, the drip edge on the rakes should always overlap the drip edge on the eaves. This works out correctly if you do the eaves first.

Is eave trim the same as drip edge?

Eave trim is the metal flashing that covers the low side of the building. Simply put, it's installed on the side of the building that follows the pitch of the roof. Eave trim is used when a gutter is not required. ... Eave trim is also referred to as drip edge or eave flashing.

Why does water run behind my gutters?

Water Gets Behind the Gutter

If water is dripping behind your gutter, it's probably because it was installed without any flashing over the back of the gutter. The gutter apron will prevent the dripping. A gutter apron is a bent piece of flashing that tucks up under the shingles and over the gutter.

What is the difference between drip edge and gutter apron?

A drip edge, which is installed along the eaves and roof edge, directs the water away from your fascia board and into the gutter. On the other hand, a gutter apron has the advantage of providing you with less maintenance over time. Gutter flashing or gutter apron serves the primary purpose of collecting all the water.

Does fascia go on before shingles?

Fascia and soffit are installed after the roof installation is finished. It is ideal that soffit and fascia materials be installed before you place tiles or any other type of roofing material on the roof.

Do you overlap shingles side by side?

When you reach a peak or hip, shingle all the way up the first side (until the reveal portion of the shingles is within 4 inches of the peak) and cut the 3-tab shingles just below the ridge. Shingle the other side and allow these pieces to overlap the ridge by no more than 4 inches.
