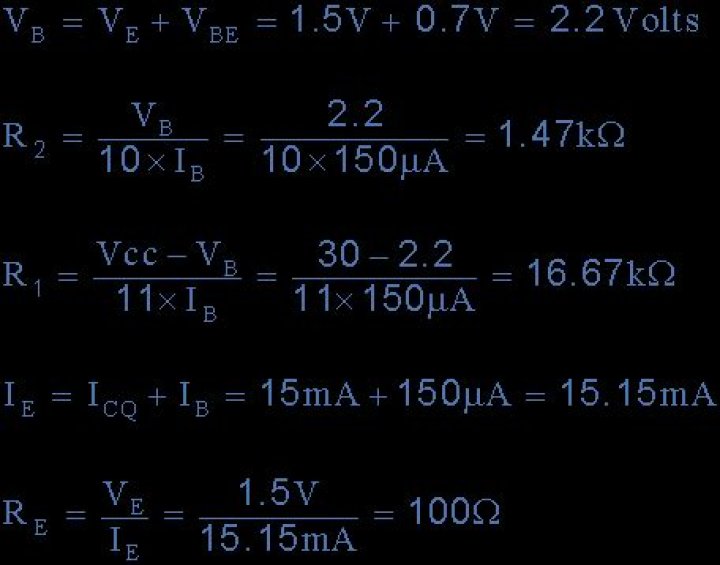

The aim of an AC signal amplifier circuit is to stabilise the DC biased input voltage to the amplifier and thus only amplify the required AC signal. This stabilisation is achieved by the use of an Emitter Resistance which provides the required amount of automatic biasing needed for a common emitter amplifier.

Why do we use Re and CE in a BJT amplifier?

An Emitter bypass capacitor CE is used parallel with RE to provide a low reactance path to the amplified AC signal. If it is not used, then the amplified AC signal following through RE will cause a voltage drop across it, thereby dropping the output voltage.

What is the role of emitter resistance in the transistor amplifier circuit?

What is the role of emitter resistance in the transistor amplifying circuit? ... The emitter resistor decreases effective input voltage decrease when collector current increases and thus it reduces collector current itself.

Why is common emitter used?

Common emitter (CE) configuration. ... Common emitter transistors are used most widely, because a common emitter transistor amplifier provides high current gain, high voltage gain and high power gain. This type of transistor gives for a small change in input there is small change in output.

What is emitter resistor?

The CE amplifier is often constructed with an emitter resistor as shown in figure 5.9. This resistor provides a form of negative feedback that can be used to stabilize both the DC operating point and the AC gain. It can be shown that the voltage transfer function across the transistor is.

Transistor Biasing: Emitter Stabilized Bias and Emitter Bias Configuration Explained

23 related questions found

What is the purpose of emitter capacitor?

If the bypass capacitor is removed, an extreme degeneration is produced in the amplifier circuit and the voltage gained will be reduced. Thus, the sole purpose or role of an emitter capacitor is to avoid voltage gain drop.

What is emitter degeneration?

Emitter degeneration in an amplifier can be described as when all or part of an emitter resistor is not bypassed for ac or rf. Look back to the earlier tutorial on small signal amplifiers and see in figure 4 the emitter bypass capacitor C2. ... That means for all practical purposes there is no emitter by pass capacitor.

Why we use CE configuration only?

⦁ CE is most widely used because it provides the voltage gain required for most of the day to day applications of preamp and power amps. ... It also provide the maximum transconductance or voltage gain for a given load.

Why are emitters called emitters?

When an AC signal is applied to the transistor amplifier it causes the base voltage VB to fluctuate in value at the AC signal. ... It is also named common- emitter amplifier because the emitter of the transistor is common to both the input circuit and output circuit.

Why is emitter grounded?

"Earth" or "ground" in this case just means the point in the circuit the designer decided to call "zero volts", and use as a reference when measuring voltages elsewhere in the circuit - it does not imply an actual connection to the earth.

How does emitter feedback bias improve on base bias?

If an emitter resistor is added to the base-bias circuit, the result is emitter-feedback bias, as shown in Figure. The idea is to help make base bias more predictable with negative feedback, which negates any attempted change in collector current with an opposing change in base voltage.

Why bypass capacitor is used in CE amplifier?

Emitter Bypass Capacitor

When an emitter resistance is added in a CE (Common Emitter) amplifier, its voltage gain is reduced, but the input impedance increases. Whenever bypass capacitor is connected in parallel with an emitter resistance, the voltage gain of CE amplifier increases.

How does emitter resistor Re provides stability Mcq?

Explanation: In a CE short circuit gain obtained with hybrid pi model circuit, the emitter resistor provides additional stability along with increasing the negative feedback sent to the collector. The addition of the emitter resistance enables the transistor's emitter to no longer be grounded to zero – volt potential.

What does an emitter do?

The emitter "emits" electrons into the base, which controls the number of electrons the emitter emits. Most of the electrons emitted are "collected" by the collector, which sends them along to the next part of the circuit.

Why resistor is used in transistor?

The role of the base resistor is to expand the very small transistor input voltage range (about 0.7 V) to the logical "1" level (about 3.5 V) by converting the input voltage into current.

What are the major advantages of CE configuration of a transistor over others?

The CE configuration provides both High Current and Voltage gain unlike other configurations like CC (High current gain but voltage gain less than unity i.e 1) and CB (High voltage gain but current gain less than unity).

Why is it called emitter and collector?

1 Answer. Your hunch is exactly right: the emitter emits charge carriers into the collector, which collects them.

What does emitter mean in physics?

n. 1. a person or thing that emits. 2. (Nuclear Physics) a radioactive substance that emits radiation: a beta emitter.

Why in a transistor the collector is called the collector?

It can be either NPN or PNP type fig. 1.

In most transistors, emitter is heavily doped. Its job is to emit or inject electrons into the base. ... The collector is so named because it collects electrons from base. The collector is the largest of the three regions; it must dissipate more heat than the emitter or base.

Why it is called transistor?

The word transistor is a combination of transfer and resistance. This is because it transfers the resistance from one end of the device to the other end or we can say, transfer of resistance. Hence, the name transistor. Transistors have very high input resistance and very low output resistance.

Why CC configuration is called voltage buffer?

Because of its high input impedance and low output impedance, the common collector circuit finds wide application as a buffer amplifier between a high impedance source and low impedance load. it is called a voltage buffer. Its other name is emitter follower.

Why CE configuration is preferred as switch?

CE configuration is the most preferred transistor configuration when used as a switch because it. requires only one power supply. requires low voltage or current. is easily understood by everyone.

How does the emitter resistor affect the stability of a transistor in CE configuration?

In other words, the addition of this emitter terminal resistance helps control the transistors base biasing using negative feedback, which negates any attempted change in collector current with an opposing change in the base bias voltage and so the circuit tends to be stabilised at a fixed level.

What is BJT amplification?

In standard operation the BJT transistor works as an amplifier. Let's apply to the base AC signal and DC signal and we will see the amplification on the resulting I C – V E C curve, so all oscillations of the base current is resulting in amplified collector current.

What is common emitter mode?

In common emitter configuration, base is the input terminal, collector is the output terminal and emitter is the common terminal for both input and output. Thus, the emitter terminal of a transistor is common for both input and output and hence it is named as common emitter configuration. ...
