Why line- ground fault occurred frequently?
Sarah Smith Generally, a single line-to-ground fault on a transmission line occurs when one conductor drops to the ground or comes in contact with the Ground and neutral - Wikipedia
What is the most common cause of ground faults?
The usual suspects for ground-faults include worn insulation, conductive dusts, water, or other "soft grounds." Ground faults account for more than 80% of equipment short circuits and in 90% of those cases it is caused by insulation deterioration on wires and cables.
Why line to line fault occurs?
A line to line fault or unsymmetrical fault occurs when two conductors are short circuited. The LL fault is placed between lines b and c so that the fault be symmetrical with respect to the reference phase a which is un-faulted. ...
Which of the following faults occur most frequently?
Among the given faults, LG or line to ground fault is most common and occurs frequently.
What is line to ground fault?
A line to line fault is one where shortcircuiting occurs between two phases of a system. A line to groung fault is one where shortcircuit occurs between one phase of the system and the earth. A double line to ground fault is one where shortcircuiting occurs between two phases along with the earth at the same time.
What are Ground Faults? | Repair and Replace
33 related questions foundWhat causes a ground fault?
Ground faults can be caused by water leaking into a breaker box, damaged wires or appliances, poorly insulated or damaged wires, or even a build-up of debris within a box. Ground faults can lead to disastrous results such as electrical shock, fire, or burns.
What happens during a phase to ground fault?
In three-phase systems, a fault may involve one or more phases and ground, or may occur only between phases. In a "ground fault" or "earth fault", current flows into the earth. The prospective short-circuit current of a predictable fault can be calculated for most situations.
Which fault is very frequent fault?
Unsymmetrical faults
Line to ground fault (L-G) is most common fault and 65-70 percent of faults are of this type. It causes the conductor to make contact with earth or ground. 15 to 20 percent of faults are double line to ground and causes the two conductors to make contact with ground.
Which fault are more frequent in power system and why?

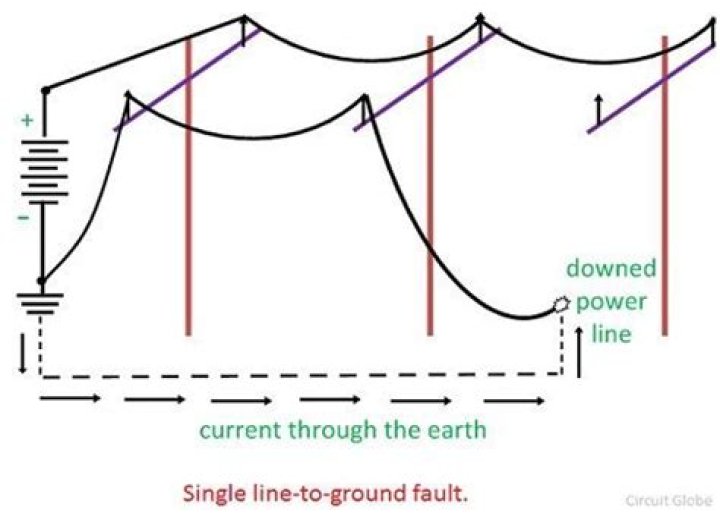

The unsymmetrical fault is the most common types of fault occur in the power system. 1. Single Line-to-Line Ground – The single line of ground fault occurs when one conductor falls to the ground or contact the neutral conductor. The 70 – 80 percent of the fault in the power system is the single line-to-ground fault.
Which fault happens more frequently in power system?
A single line-to-ground (LG) fault is one of the most common faults and experiences show that 70-80 percent of the faults that occur in power system are of this type.
Why is fault current so high?
Fault currents are caused by very low impedance short circuits. ... When there is a short circuit the resistance becomes very small, and that means the current becomes very large. If the resistance was zero, then the calculated fault current would go to infinity.
How does fault current occur?
The fault current is the electrical current which flows through a circuit during an electrical fault condition. A fault condition occurs when one or more electrical conductors short to each other or to ground. ... Fault interruption devices include fuses, circuit breakers and relays.
What are the causes of faults in power system?
Causes of Faults- Overvoltage due to switching surges.
- Severe lightning strokes.
- Aging of conductor.
- Heavy wind, rains, and snowfall.
- Falling trees on the transmission line.
- Excessive internal and external stresses on the conductors.
- High changes in atmospheric temperatures.
How do you fix a ground fault?
What to Do to Fix a Ground Fault- Inspect wiring to troubleshoot the ground fault.
- Replace regular wall outlets with GFCI outlets.
- Add a GFCI circuit breaker to protect every switch on the circuit.
- Remove damaged wires or terminals and replace.
- Throw away old, worn-out appliances or any device with damaged wiring.
Can short circuit cause fire?
Short circuits are a major type of electrical accident that can cause serious damage to your electrical system. ... The result of a short circuit can be appliance damage, electrical shock, or even a fire.
Which fault gives rise to symmetrical faults?
Railways Question
LLLG fault is a symmetrical fault. LG, LL, LLG faults are asymmetrical faults. So, three-phase faults give symmetrical fault currents.
What percentage of fault occurs in the power system due to line to line fault?
15% of fault occurring in power system is line to line fault.
What are types of unsymmetrical faults?
Unsymmetrical Faults
There are mainly three types namely line to ground (L-G), line to line (L-L), and double line to ground (LL-G) faults. The line to ground fault (L-G) is the most common fault and 65-70 percent of faults are of this type.
Which fault frequently occurred in HVDC?
In HVDC system, faults on rectifier side or inverter side have major affects on system stability. The various types of faults are considered in the HVDC system which causes due to malfunctions of valves and controllers, misfire and short circuit across the inverter station, flashover and three phase short circuit.
What is double line to ground fault?
In double line-to-ground fault, the two lines contact with each other along with the ground. The probability of such types of faults is nearly 10 %. The symmetrical and unsymmetrical fault mainly occurs in the terminal of the generator, and the open circuit and short circuit fault occur on the distribution system.
Why is short circuit analysis necessary?
"Short Circuit analysis is required to ensure that existing and new equipment ratings are adequate to withstand the available short circuit current at each point in the electrical power systems." ... Short circuit study is used to determine the available fault current or short circuit current at each point in the system.
Which system produces highest ground fault current when a fault to ground occurs?
Solid vs.
However, an effectively grounded system also has the highest values of ground-fault currents, which may range from zero to three times the three-phase short-circuit current.
Why is single line-to-ground fault higher than three phase fault?
This usually occurs when the zero sequence impedance for the fault is less than the positive and negative sequence impedances. ... This occurs most often when a solidly grounded delta-wye transformer is located nearby.
How does phase to phase fault occur?
Phase to Phase Faults
Phase to Phase Fault In a phase to phase fault (L1 to L2 for example), two phases are connected together. The fault current is again, the nominal applied voltage divided by the summed impedance.
