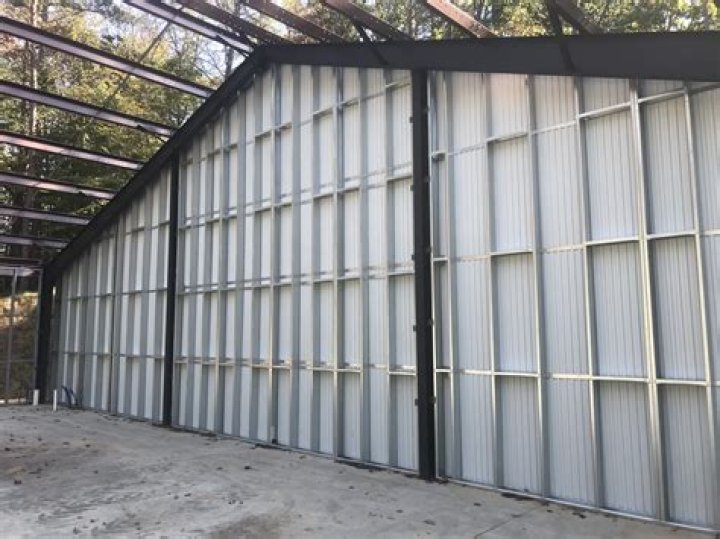

Rusting of steel studs and connections is not anything new. Once you cut, scratch or pierce the protective galvanizing coating, you can/will get rust and screws are good at that. On commercial exterior walls proper flashing the way to keep most of the water away.

Can metal studs be used outside?

When building an outdoor kitchen, use high-quality metal studs so that your outdoor kitchen is durable and can last you a long time.

Can I use galvanized studs outside?

The studs will be fine, it is the cut edges of the metal studs and the fastener penetrations that will rust and corrode first. The stud construction could be built on a redwood (or treated) bottom plate to protect any oxidation from staining the stone.

Are steel studs galvanized?

Metal studs are produced by forming the studs from strips of galvanized steel in cold rolling machines. ... The flanges of the C-shaped stud are the portion of the stud where you will apply wall-enclosing materials such as drywall or sound boards.

Can I finish my basement with metal studs?

Metal wall studs, which are typically composed of steel, are usually intended for use in basement walls. They can also help design DIY partition walls or other parts of simple metal structures. Metal framing studs are used to support a non-load-bearing wall.

How long does it take for galvanized steel to rust?

17 related questions found

Do metal wall studs rust?

Rust on a steel stud can be compared to rot on a wood stud. When a wall is properly constructed, there is little likelihood of a stud rusting to the point of failure. ... Normal cutting and drilling of steel studs removes the zinc coating in the cut area.

Can you run Romex in metal studs?

Romex can be used in a metal building as long as the cable is protected through the holes in the studs with bushings. You should be careful to meet the support requirements in vertical strokes and boxes.

Can you frame a house with metal studs?

Yes! It absolutely is possible. Not only that, but it has quite a few advantages over traditional wood platform framing, over CMU construction, and even over light gauge steel framing.

Are steel studs stronger than wood?

For instance, wood studs are stronger than metal studs, and are able to support more weight without being compromised. They are also longer-lasting and easier to cut as well. On the negative side, wood studs are more expensive than steel and can be harder to install, requiring many different tools.

Are metal studs magnetic?

If you think your home might have steel studs, you can check by running a magnet along a wall. While nails and screws in wood studs will attract a magnet, steel studs will have a stronger attraction along the entire height of the stud.

How do you cut metal studs?

To cut steel studs, snip both sides, then score and bend.

He cuts both sides with snips and scores a line on the back. After bending the stud back and forth a few times, he ends up with a burr-free cut. No need for hearing protection and no metal shavings sticking to your boots.

Is metal studs cheaper than wood?

Cost-effective: While never as cheap as wood, steel studs are now only about 30-percent more expensive than wood studs. Lightweight: Steel studs are lighter to carry and store than wood because they are hollow.

How much weight can metal studs hold?

The axial load, or load weight limit, for metal studs varies widely. An 8-foot, 3-1/2-inch metal stud, for instance, may support over 2,000 pounds, while a 16-foot stud of the same width will support as little as 400 pounds.

Can you use steel studs for a shed?

Yes. Going beyond 'can' to 'should' will involve asking: How long a service life is desired from the shed? This will determine the grade of framing to be used.

Why do builders use metal studs?

Metal studs provide disaster-resistance and are not prone to termite or mold damage, like wood studs. Metal studs are also healthier than wood studs because metal does not emit VOCs. Wood has several advantages over metal studs. ... Wood studs are also easier and safer to cut, maintain, and repair, over metal studs.

Why do commercials use metal studs?

For commercial projects, a main reason we use metal studs is because metal is fireproof. While metal studs do not provide a purely nonflammable environment, they do reduce the amount of flammable material.

Is it cheaper to frame with metal studs?

Steel framing can cost three to 15 percent more than wood studs, based on Steel Framing Alliance calculations, but metal studs offer cost advantages in other areas that can offset this price difference. Warranty callbacks are minimized because steel does not shrink, split or warp.

Can you use drywall screws in metal studs?

Fine-thread drywall screws are self-threading, so they work well for metal studs. Fine-thread drywall screws are best for installing drywall to metal studs. Coarse threads have a tendency to chew through the metal, never gaining proper traction.

Can you hang cabinets on metal studs?

Unlike wooden studs, steel studs are not the best material to hang anything from, let alone cabinets! ... In a kitchen, wood or plywood strips are often installed between the metal studs to give a strong nailing/screwing surface to attach the cabinets to.

Are metal studs load bearing?

Lighter gauge metal studs are used in non-load bearing applications such as some interior walls, half-walls, and partitions. ... Metal studs are available in many of the same basic dimensions as wood studs. Metal studs are usually mechanically fastened with screws.

How many MC cables go through metal studs?

Both AC and MC cable are considered supported where passing through studs spaced no more than 4 ½ foot for AC cable, and 6 foot for MC cable.

Can you use plastic boxes on metal studs?

You can use plastic boxes with metal studs, but they must be the kind of boxes designed for metal studs. Don't use boxes designed for wood studs. It is allowable in most jurisdictions, however there is a safety consideration. If you use an plastic box, the steel stud assembly is not bonded to ground.
